# DBSCAN: density-based clustering for discovering clusters in large datasets with noise - Unsupervised Machine Learning

# 1 Concepts of density-based clustering

**Partitioning methods** (**K-means**, **PAM** **clustering**) and **hierarchical clustering** are suitable for finding spherical-shaped **clusters** or convex clusters. In other words, they work well for compact and well separated clusters. Moreover, they are also severely affected by the presence of noise and outliers in the data.

Unfortunately, real life data can contain: i) clusters of arbitrary shape such as those shown in the figure below (oval, linear and “S” shape clusters); ii) many outliers and noise.

The figure below shows a dataset containing nonconvex clusters and outliers/noises. The simulated dataset **multishapes** [in **factoextra** package] is used.

The plot above contains 5 clusters and outliers, including:

- 2 ovales clusters
- 2 linear clusters
- 1 compact cluster

Given such data, k-means algorithm has difficulties for identifying theses clusters with arbitrary shape. To illustrate this situation, the following R code computes **K-means** algorithm on the dataset **multishapes** [in **factoextra** package]. The function **fviz_cluster()** [in **factoextra**] is used to visualize the clusters.

The latest version of **factoextra** can be installed using the following R code:

```
if(!require(devtools)) install.packages("devtools")
devtools::install_github("kassambara/factoextra")
```

Compute and visualize k-means clustering using the dataset **multishapes**:

```
library(factoextra)
data("multishapes")
df <- multishapes[, 1:2]
set.seed(123)
km.res <- kmeans(df, 5, nstart = 25)
fviz_cluster(km.res, df, frame = FALSE, geom = "point")
```

We know there are 5 five clusters in the data, but it can be seen that k-means method inaccurately identify the 5 clusters.

This chapter describes **DBSCAN**, a **density-based clustering algorithm**, introduced in Ester et al. 1996, which can be used to identify clusters of any shape in data set containing noise and outliers. DBSCAN stands for Density-Based Spatial Clustering and Application with Noise.

**The advantages of DBSCAN are**:

- Unlike to
**K-means**, DBSCAN does not require the user to specify the number of clusters to be generated - DBSCAN can find any shape of clusters. The cluster doesn’t have to be circular.
- DBSCAN can identify outliers

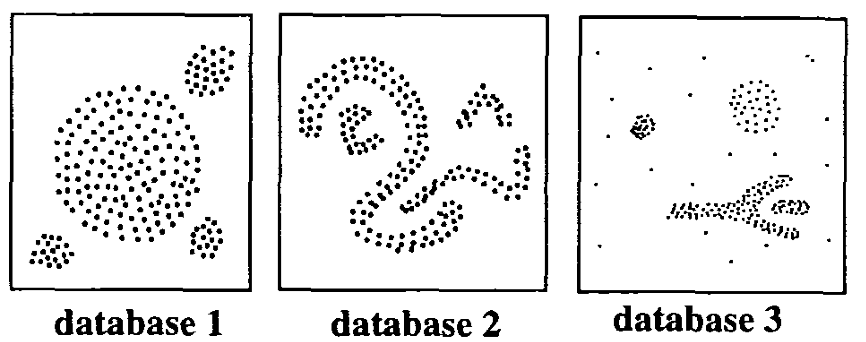

The basic idea behind **density-based clustering** approach is derived from a human intuitive clustering method. For instance, by looking at the figure below, one can easily identify four clusters along with several points of noise, because of the differences in the density of points.

(From Ester et al. 1996)

As illustrated in the figure above, clusters are dense regions in the data space, separated by regions of lower density of points. In other words, the density of points in a cluster is considerably higher than the density of points outside the cluster (“areas of noise”).

**DBSCAN** is based on this intuitive notion of “clusters” and “noise”. The key idea is that for each point of a cluster, the neighborhood of a given radius has to contain at least a minimum number of points.

# 2 Algorithm of DBSCAN

The goal is to identify dense regions, which can be measured by the number of objects close to a given point.

Two important parameters are required for **DBSCAN**: **epsilon** (“eps”) and **minimum points** (“MinPts”). The parameter **eps** defines the radius of neighborhood around a point x. It’s called called the \(\epsilon\)-neighborhood of x. The parameter **MinPts** is the minimum number of neighbors within “eps” radius.

Any point x in the dataset, with a neighbor count greater than or equal to **MinPts**, is marked as a **core point**. We say that x is **border point**, if the number of its neighbors is less than MinPts, but it belongs to the \(\epsilon\)-neighborhood of some core point z. Finally, if a point is neither a core nor a border point, then it is called a noise point or an outlier.

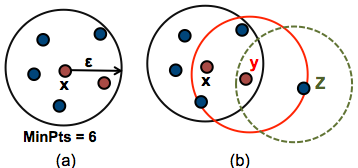

The figure below shows the different types of points (core, border and outlier points) using **MinPts = 6**. Here x is a core point because \(neighbours_\epsilon(x) = 6\), y is a border point because \(neighbours_\epsilon(y) < MinPts\), but it belongs to the \(\epsilon\)-neighborhood of the core point x. Finally, z is a noise point.

We define 3 terms, required for understanding the **DBSCAN algorithm**:

**Direct density reachable**: A point “A” is**directly density reachable**from another point “B” if: i) “A” is in the \(\epsilon\)-neighborhood of “B” and ii) “B” is a core point.**Density reachable**: A point “A” is**density reachable**from “B” if there are a set of core points leading from “B” to “A.**Density connected**: Two points “A” and “B” are**density connected**if there are a core point “C”, such that both “A” and “B” are**density reachable**from “C”.

A **density-based cluster** is defined as a group of density connected points. The algorithm of density-based clustering (DBSCAN) works as follow:

The algorithm of density-based clustering works as follow:

- For each point \(x_i\), compute the distance between \(x_i\) and the other points. Finds all neighbor points within distance
**eps**of the starting point (\(x_i\)). Each point, with a neighbor count greater than or equal to**MinPts**, is marked as**core point**or**visited**. - For each
**core point**, if it’s not already assigned to a cluster, create a new cluster. Find recursively all its density connected points and assign them to the same cluster as the core point. - Iterate through the remaining unvisited points in the dataset.

# 3 R packages for computing DBSCAN

Three R packages are used in this article:

**fpc**and**dbscan**for computing density-based clustering**factoextra**for visualizing clusters

The R packages **fpc** and **dbscan** can be installed as follow:

```
install.packages("fpc")
install.packages("dbscan")
```

# 4 R functions for DBSCAN

The function **dbscan()** [in **fpc** package] or **dbscan()** [in **dbscan** package] can be used.

As the name of DBSCAN functions is the same in the two packages, we’ll explicitly use them as follow: fpc::dbscan() and dbscan::dbscan().

In the following examples, we’ll use **fpc** package. A simplified format of the function is:

```
dbscan(data, eps, MinPts = 5, scale = FALSE,
method = c("hybrid", "raw", "dist"))
```

**data**: data matrix, data frame or dissimilarity matrix (dist-object). Specify method = “dist” if the data should be interpreted as dissimilarity matrix or object. Otherwise Euclidean distances will be used.**eps**: Reachability maximum distance**MinPts**: Reachability minimum number of points**scale**: If TRUE, the data will be scaled**method**: Possible values are:**dist**: Treats the data as distance matrix**raw**: Treats the data as raw data**hybrid**: Expect also raw data, but calculates partial distance matrices

Recall that, DBSCAN clusters require a minimum number of points (MinPts) within a maximum distance (eps) around one of its members (the seed).

Any point within eps around any point which satisfies the seed condition is a cluster member (recursively).

- Some points may not belong to any clusters (noise).

In the following examples, we’ll use the simulated **multishapes** data [in **factoextra** package]:

```
# Load the data
# Make sure that the package factoextra is installed
data("multishapes", package = "factoextra")
df <- multishapes[, 1:2]
```

The function **dbscan()** can be used as follow:

```
library("fpc")
# Compute DBSCAN using fpc package
set.seed(123)
db <- fpc::dbscan(df, eps = 0.15, MinPts = 5)
# Plot DBSCAN results
plot(db, df, main = "DBSCAN", frame = FALSE)
```

Note that, the function **plot.dbscan()** uses different point symbols for core points (i.e, seed points) and border points. Black points correspond to outliers. You can play with **eps** and **MinPts** for changing cluster configurations.

It can be seen that DBSCAN performs better for these data sets and can identify the correct set of clusters compared to k-means algorithms.

It’s also possible to draw the plot above using the function **fviz_cluster()** [ in **factoextra** package]:

```
library("factoextra")
fviz_cluster(db, df, stand = FALSE, frame = FALSE, geom = "point")
```

The result of **fpc::dbscan()** function can be displayed as follow:

```
# Print DBSCAN
print(db)
```

```
## dbscan Pts=1100 MinPts=5 eps=0.15
## 0 1 2 3 4 5
## border 31 24 1 5 7 1
## seed 0 386 404 99 92 50
## total 31 410 405 104 99 51
```

In the table above, column names are cluster number. Cluster 0 corresponds to outliers (black points in the DBSCAN plot).

```
# Cluster membership. Noise/outlier observations are coded as 0
# A random subset is shown
db$cluster[sample(1:1089, 50)]
```

```
## [1] 1 3 2 4 3 1 2 4 2 2 2 2 2 2 1 4 1 1 1 0 4 2 2 5 2 2 2 2 1 1 0 4 2 3 1
## [36] 2 2 1 1 1 1 2 2 1 1 1 3 2 1 3
```

The function **print.dbscan()** shows a statistic of the number of points belonging to the clusters that are seeds and border points.

DBSCAN algorithm requires users to specify the optimal **eps** values and the parameter **MinPts**. In the R code above, we used **eps = 0.15** and **MinPts = 5**. One limitation of DBSCAN is that it is sensitive to the choice of \(\epsilon\), in particular if clusters have different densities. If \(\epsilon\) is too small, sparser clusters will be defined as noise. If \(\epsilon\) is too large, denser clusters may be merged together. This implies that, if there are clusters with different local densities, then a single \(\epsilon\) value may not suffice.

A natural question is:

How to define the optimal value of **eps**?

# 5 Method for determining the optimal eps value

The method proposed here consists of computing the he **k-nearest neighbor distances** in a matrix of points.

The idea is to calculate, the average of the distances of every point to its k nearest neighbors. The value of k will be specified by the user and corresponds to **MinPts**.

Next, these k-distances are plotted in an ascending order. The aim is to determine the “knee”, which corresponds to the optimal **eps** parameter.

A knee corresponds to a threshold where a sharp change occurs along the k-distance curve.

The function **kNNdistplot()** [in **dbscan** package] can be used to draw the k-distance plot:

```
dbscan::kNNdistplot(df, k = 5)
abline(h = 0.15, lty = 2)
```

It can be seen that the optimal **eps** value is around a distance of 0.15.

# 6 Cluster predictions with DBSCAN algorithm

The function **predict.dbscan(object, data, newdata)** [in **fpc** package] can be used to predict the clusters for the points in *newdata*. For more details, read the documentation (*?predict.dbscan*).

# 7 Application of DBSCAN on a real data

The **iris** dataset is used:

```
# Load the data
data("iris")
iris <- as.matrix(iris[, 1:4])
```

The optimal value of “eps” parameter can be determined as follow:

```
dbscan::kNNdistplot(iris, k = 4)
abline(h = 0.4, lty = 2)
```

Compute DBSCAN using fpc::dbscan() and dbscan::dbscan(). Make sure that the 2 packages are installed:

```
set.seed(123)
# fpc package
res.fpc <- fpc::dbscan(iris, eps = 0.4, MinPts = 4)
# dbscan package
res.db <- dbscan::dbscan(iris, 0.4, 4)
```

- The result of the function
**fpc::dbscan()**provides an object of class ‘dbscan’ containing the following components:**cluster**: integer vector coding cluster membership with noise observations (singletons) coded as 0**isseed**: logical vector indicating whether a point is a seed (not border, not noise)**eps**: parameter eps**MinPts**: parameter MinPts

- The result of the function
**dbscan::dbscan()**is an integer vector with cluster assignments. Zero indicates noise points.

Note that the function **dbscan:dbscan()** is a fast re-implementation of DBSCAN algorithm. The implementation is significantly faster and can work with larger data sets than the function **fpc:dbscan()**.

Make sure that both version produce the same results:

`all(res.fpc$cluster == res.db)`

`## [1] TRUE`

The result can be visualized as follow:

`fviz_cluster(res.fpc, iris, geom = "point")`

Black points are outliers.

# 8 Infos

This analysis has been performed using **R software** (ver. 3.2.1)

- Martin Ester, Hans-Peter Kriegel, Joerg Sander, Xiaowei Xu (1996). A Density-Based Algorithm for Discovering Clusters in Large Spatial Databases with Noise. Institute for Computer Science, University of Munich. Proceedings of 2nd International Conference on Knowledge Discovery and Data Mining (KDD-96)
