Introduction

ggplot2.customize is an easy to use function, to customize plots (e.g : box and whisker plot, histogram, density plot, dotplot, scatter plot, line plot, …) generated with R ggplot2 package. ggplot2.customize function is from easyGgplot2 R package and it can be used to personalize graphical parameters including axis, title, background, color, legend and more. To be able to run the R script of this tutorial, you have to install easyGgplot2. This is explained in the next section.

The aim of this tutorial is to show you step by step, how to plot and customize a box plot using ggplot2.customize function.

Note that all the R scripts used in this tutorial to customize ggplot2 boxplot can also be applied to personalize the others graphics (including boxplot, histogram, density plot, dotplot, etc, …) generated by either ggplot2 or easyGgplot2 R packages.

At the end of this tutorial you will be able to draw, with few R code, the following plots :

ggplot2 boxplot : ggplot2 tutorial on how to use ggplot2.customize function to personalize easily graphics (main title, axis labels, legend, background and color) generated by ggplot2 using r statistical software

The prototype of ggplot2.customize function is described at the end of this document.

Install and load easyGgplot2 package

easyGgplot2 R package can be installed as follow :

install.packages("devtools")
library(devtools)
install_github("easyGgplot2", "kassambara")

Load the package using this R code :

library(easyGgplot2)

Data format

The data must be a numeric vector or a data.frame (columns are variables and rows are observations).

ToothGrowth data is used in the following examples.

# data.frame
df <- ToothGrowth
head(df)
##    len supp dose
## 1  4.2   VC  0.5
## 2 11.5   VC  0.5
## 3  7.3   VC  0.5
## 4  5.8   VC  0.5
## 5  6.4   VC  0.5
## 6 10.0   VC  0.5

ToothGrowth describes the effect of Vitamin C on Tooth growth in Guinea pigs. The response is the length (len) of teeth in each of 10 guinea pigs at each of three dose levels of Vitamin C (0.5, 1, and 2 mg) with each of two delivery methods (orange juice or ascorbic acid).

The data is a data frame with 60 observations on 3 variables. * [,1] len numeric Tooth length. * [,2] supp factor Supplement type (VC or OJ). * [,3] dose numeric Dose in milligrams.


Basic box plot

You can generate basic box plot using either ggplot2.boxplot [easyGgplot2 package] or geom_boxplot [ggplot2 package].

# Boxplot using ggplot2 package

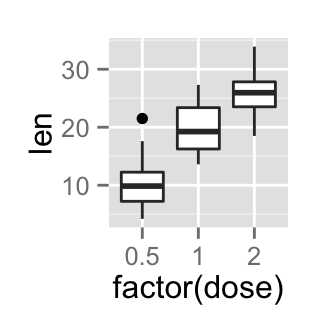

p <- ggplot(ToothGrowth, aes(factor(dose), len))+geom_boxplot()
p
# Boxplot using easyGgplot2 package

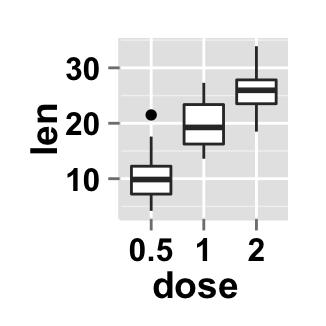

p<-ggplot2.boxplot(data = ToothGrowth, xName = 'dose',yName = 'len')
p

ggplot2 boxplot : ggplot2 tutorial on how to use ggplot2.customize function to personalize easily graphics (main title, axis labels, legend, background and color) generated by ggplot2 using r statistical softwareggplot2 boxplot : ggplot2 tutorial on how to use ggplot2.customize function to personalize easily graphics (main title, axis labels, legend, background and color) generated by ggplot2 using r statistical software

Customize your box plot

Parameters

The arguments that can be used to customize x and y axis are listed below :

Parameters Description
xShowTitle, yShowTitle if TRUE, x and y axis titles will be shown. Set the value to FALSE to hide axis labels. Default values are TRUE.
xtitle, ytitle x and y axis labels. Default values are NULL.
xtitleFont, ytitleFont a vector of length 3 indicating respectively the size, the style and the color of x and y axis titles. Possible values for the style:“plain”, “italic”, “bold”, “bold.italic”. Color can be specified as an hexadecimal code (e.g: “#FFCC00”) or by the name (e.g : “red”, “green”). Default values are xtitleFont = c(14,"bold", "black"), ytitleFont = c(14,"bold", "black").
xlim, ylim limit for the x and y axis. Default values are NULL.
xScale, yScale x and y axis scales. Possible values : c(“none”, “log2”, “log10”). e.g: yScale = “log2”. Default values are NULL.
xShowTickLabel, yShowTickLabel if TRUE, x and y axis tick mark labels will be shown. Default values are TRUE.
xTickLabelFont, yTickLabelFont a vector of length 3 indicating respectively the size, the style and the color of x and y axis tick label fonts. Default value are xTickLabelFont = c(12, "bold", "black"), yTickLabelFont = c(12, "bold", "black").
xtickLabelRotation, ytickLabelRotation Rotation angle of x and y axis tick labels. Default value are 0.
hideAxisTicks if TRUE, x and y axis ticks are hidden. Default value is FALSE.
axisLine a vector of length 3 indicating respectively the size, the line type and the color of axis lines. Default value is c(0.5, "solid", "#E5E5E5").

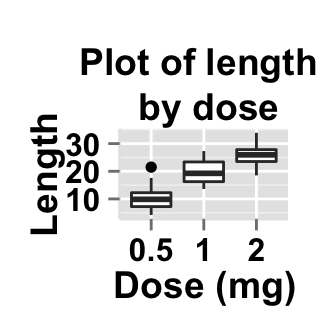

Main title and axis labels

# Change main title and axis titles
ggplot2.customize(p,
                mainTitle = "Plot of length \n by dose",
                xtitle = "Dose (mg)", ytitle = "Length")
# Customize title styles. Possible values for the font style :
  # 'plain', 'italic', 'bold', 'bold.italic'.

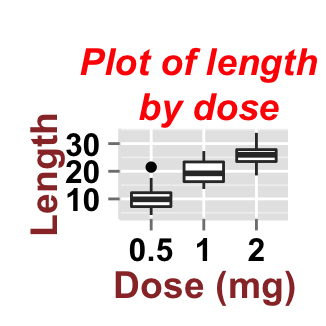

ggplot2.customize(p,
                xtitle = "Dose (mg)", ytitle = "Length",
                mainTitle = "Plot of length \n by dose",
                mainTitleFont = c(14,"bold.italic", "red"),
                xtitleFont = c(14,"bold", "#993333"), ytitleFont = c(14,"bold", "#993333"))
# Hide x an y axis titles

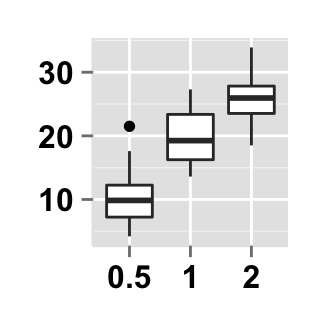

ggplot2.customize(p, xShowTitle = FALSE, yShowTitle = FALSE)

ggplot2 boxplot : ggplot2 tutorial on how to use ggplot2.customize function to personalize easily graphics (main title, axis labels, legend, background and color) generated by ggplot2 using r statistical softwareggplot2 boxplot : ggplot2 tutorial on how to use ggplot2.customize function to personalize easily graphics (main title, axis labels, legend, background and color) generated by ggplot2 using r statistical softwareggplot2 boxplot : ggplot2 tutorial on how to use ggplot2.customize function to personalize easily graphics (main title, axis labels, legend, background and color) generated by ggplot2 using r statistical software

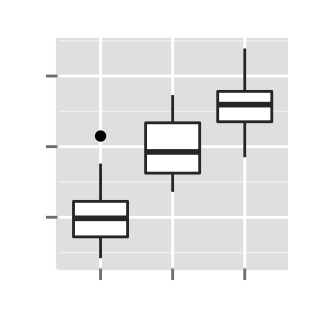

Axis ticks

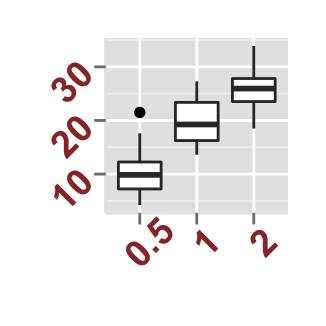

# Axis ticks labels and orientaion
ggplot2.customize(p,
                xShowTitle = FALSE, yShowTitle = FALSE,
                xTickLabelFont = c(14,"bold", "#993333"),
                yTickLabelFont = c(14,"bold", "#993333"),
                xtickLabelRotation = 45, ytickLabelRotation = 45)
# Hide axis tick labels
ggplot2.customize(p,
                xShowTitle = FALSE, yShowTitle = FALSE,
                xShowTickLabel = FALSE, yShowTickLabel = FALSE)

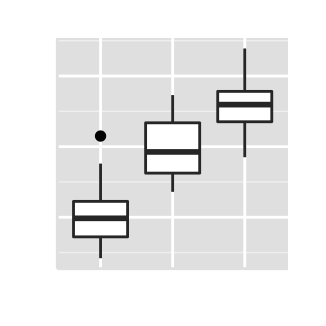

# Hide axis ticks
ggplot2.customize(p,
                xShowTitle = FALSE, yShowTitle = FALSE,
                xShowTickLabel = FALSE, yShowTickLabel = FALSE,
                hideAxisTicks = TRUE)
# AxisLine : a vector of length 3 indicating the size,
  #the line type and the color of axis lines

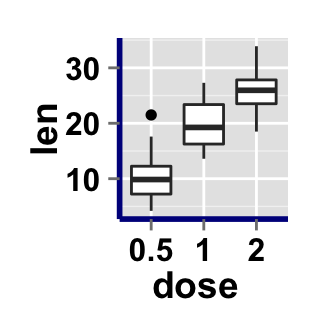

ggplot2.customize(p, axisLine = c(1, "solid", "darkblue"))

ggplot2 boxplot : ggplot2 tutorial on how to use ggplot2.customize function to personalize easily graphics (main title, axis labels, legend, background and color) generated by ggplot2 using r statistical softwareggplot2 boxplot : ggplot2 tutorial on how to use ggplot2.customize function to personalize easily graphics (main title, axis labels, legend, background and color) generated by ggplot2 using r statistical softwareggplot2 boxplot : ggplot2 tutorial on how to use ggplot2.customize function to personalize easily graphics (main title, axis labels, legend, background and color) generated by ggplot2 using r statistical softwareggplot2 boxplot : ggplot2 tutorial on how to use ggplot2.customize function to personalize easily graphics (main title, axis labels, legend, background and color) generated by ggplot2 using r statistical software

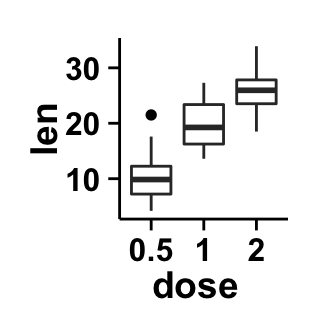

Background and colors

Change box plot background and fill colors

# change background color to "white". Default is "gray"

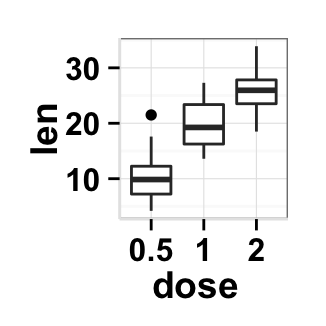

ggplot2.customize(p,backgroundColor = "white")
# change background color to "lightblue" and grid color to "white"

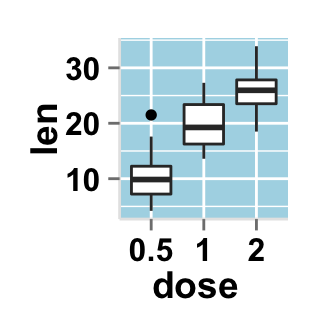

ggplot2.customize(p, backgroundColor = "lightblue",
                  gridColor = "white")

# remove grid; remove top and right borders around the plot;
# change  axis lines
ggplot2.customize(p,
                backgroundColor = "white",
                removePanelGrid = TRUE,removePanelBorder = TRUE,
                axisLine = c(0.5, "solid", "black"))

ggplot2 boxplot : ggplot2 tutorial on how to use ggplot2.customize function to personalize easily graphics (main title, axis labels, legend, background and color) generated by ggplot2 using r statistical softwareggplot2 boxplot : ggplot2 tutorial on how to use ggplot2.customize function to personalize easily graphics (main title, axis labels, legend, background and color) generated by ggplot2 using r statistical softwareggplot2 boxplot : ggplot2 tutorial on how to use ggplot2.customize function to personalize easily graphics (main title, axis labels, legend, background and color) generated by ggplot2 using r statistical software

Colors can be specified as a hexadecimal RGB triplet, such as "#FFCC00" or by names (e.g : "red" ). You can also use other color scales, such as ones taken from the RColorBrewer package. The different color systems available in R have been described in detail here.

Legend

Legend position

# Color the box plot accoording to the groupName "dose"
# Create legend
p1<- ggplot2.boxplot(data = ToothGrowth,
          xName = "dose", yName = "len", groupName = "dose")
p1
# Change the legend position to "top"
  # Possible values: "left","top", "right", "bottom"

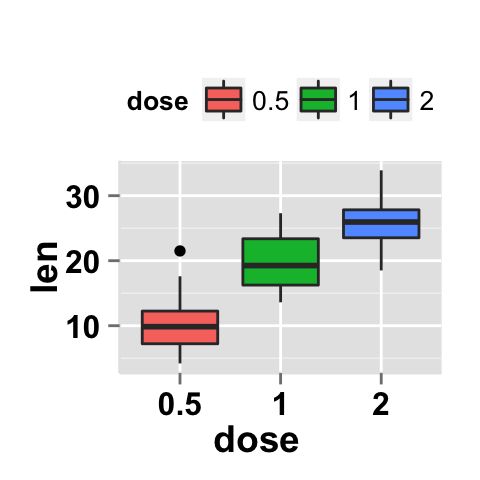

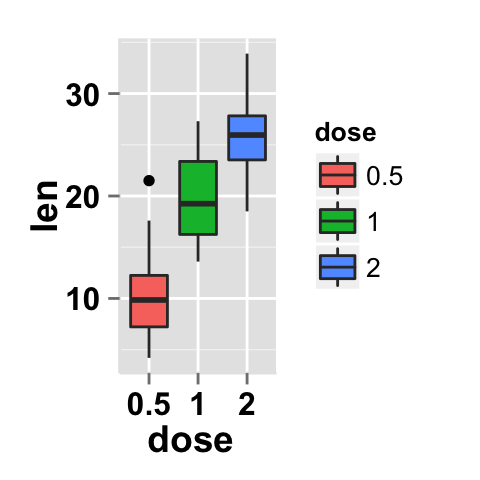

ggplot2.customize(p1, legendPosition = "top")

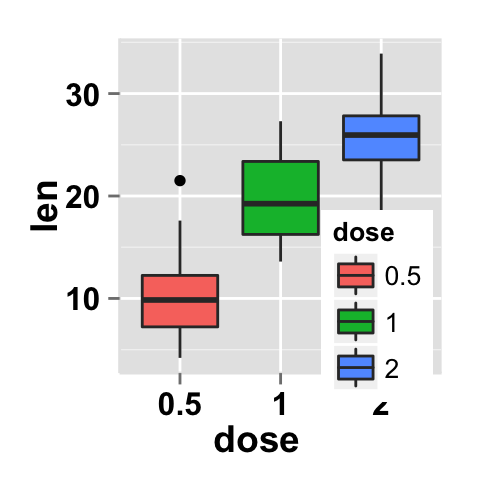

# legendPosition can be also a numeric vector c(x, y)
ggplot2.customize(p1, legendPosition = c(0.8,0.2))

ggplot2 boxplot : ggplot2 tutorial on how to use ggplot2.customize function to personalize easily graphics (main title, axis labels, legend, background and color) generated by ggplot2 using r statistical softwareggplot2 boxplot : ggplot2 tutorial on how to use ggplot2.customize function to personalize easily graphics (main title, axis labels, legend, background and color) generated by ggplot2 using r statistical softwareggplot2 boxplot : ggplot2 tutorial on how to use ggplot2.customize function to personalize easily graphics (main title, axis labels, legend, background and color) generated by ggplot2 using r statistical software

It is also possible to position the legend inside the plotting area. You have to indicate the x, y coordinates of legend box. x and y values must be between 0 and 1. c(0,0) corresponds to “bottom left” and c(1,1) corresponds to “top right” position.

Legend background color, title and text font styles

# Change legend background color, title and text font styles

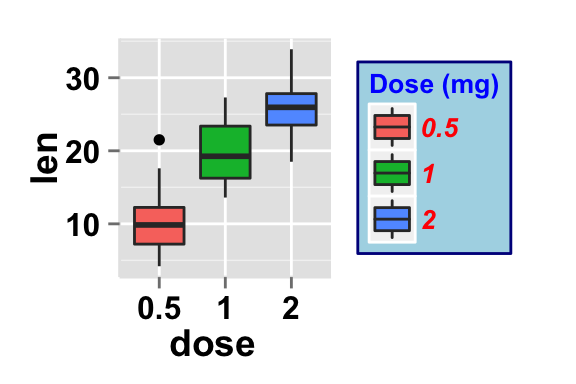

ggplot2.customize(p1,
        #legendTitleFont = c(size, style, color)
        legendTitle = "Dose (mg)",
        legendTitleFont = c(10, "bold", "blue"),
        #legendTextFont = c(size, style, color)
        legendTextFont = c(10, "bold.italic", "red"),
        #legendBackground: c(fill, lineSize, lineType, lineColor)
        legendBackground = c("lightblue", 0.5, "solid", "darkblue" )
        )

ggplot2 boxplot : ggplot2 tutorial on how to use ggplot2.customize function to personalize easily graphics (main title, axis labels, legend, background and color) generated by ggplot2 using r statistical software

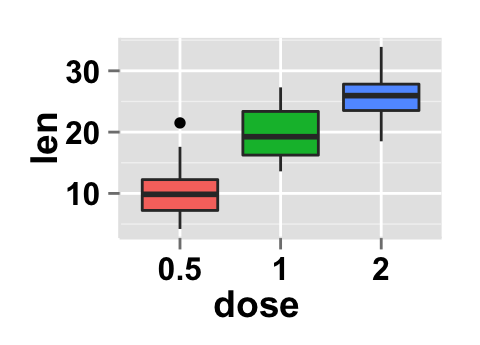

Change the order of items in the legend, remove plot legend

# Change the order of items in the legend
 # legendItemOrder : character vector indicating
# the order of items in the legends.

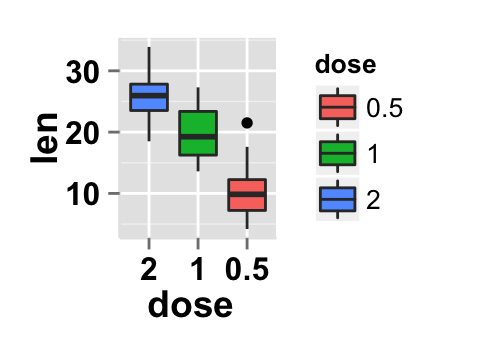

ggplot2.customize(p1, legendItemOrder = c("2", "1", "0.5"))
# Remove plot legend
ggplot2.customize(p1, showLegend = FALSE)

ggplot2 boxplot : ggplot2 tutorial on how to use ggplot2.customize function to personalize easily graphics (main title, axis labels, legend, background and color) generated by ggplot2 using r statistical softwareggplot2 boxplot : ggplot2 tutorial on how to use ggplot2.customize function to personalize easily graphics (main title, axis labels, legend, background and color) generated by ggplot2 using r statistical software

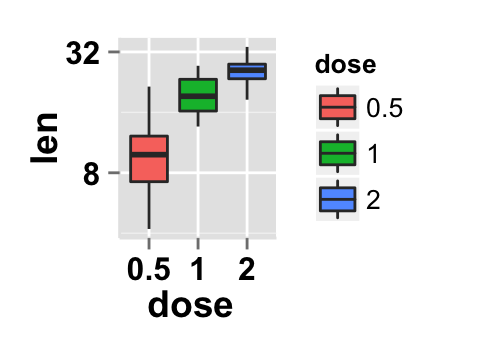

Axis scales

Possible values for y axis scale are “none”, “log2” and log10. Default value is “none”.

# Change y axis limit

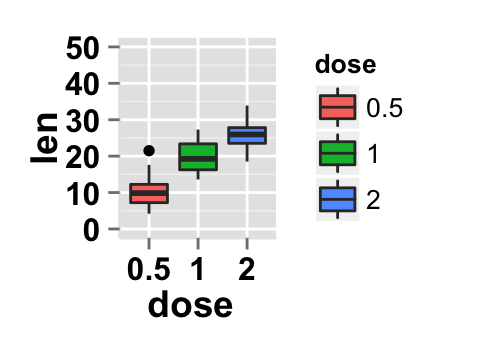

ggplot2.customize(p1, ylim = c(0,50))

# y Log scale. yScale = "log2".
  # Possible value = "none", "log2" and "log10"
ggplot2.customize(p1,  yScale = "log2")

ggplot2 boxplot : ggplot2 tutorial on how to use ggplot2.customize function to personalize easily graphics (main title, axis labels, legend, background and color) generated by ggplot2 using r statistical softwareggplot2 boxplot : ggplot2 tutorial on how to use ggplot2.customize function to personalize easily graphics (main title, axis labels, legend, background and color) generated by ggplot2 using r statistical software

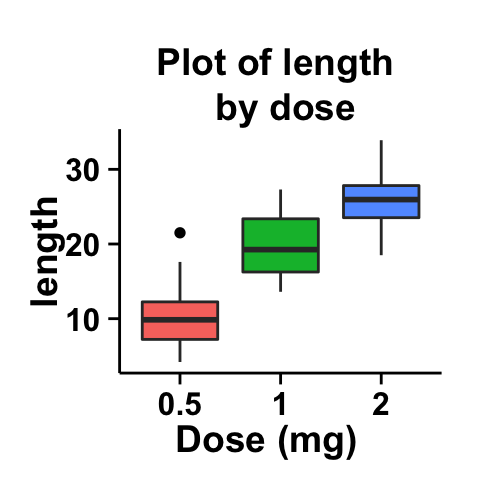

Create a customized plots with few R code

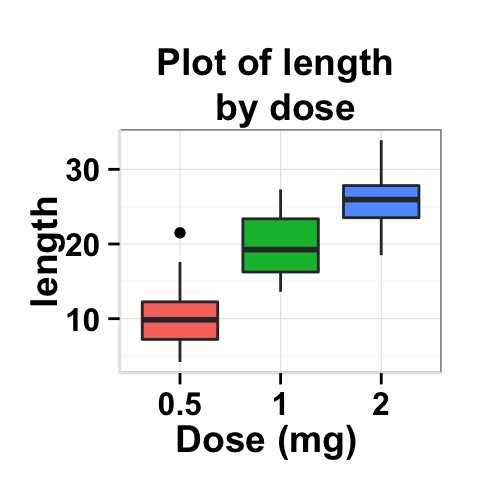

# Customized box plot with centered dot plot

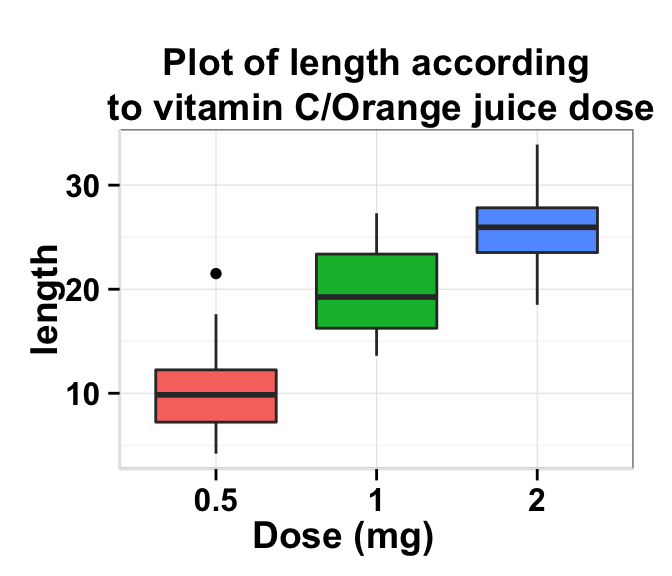

ggplot2.customize(p1, showLegend = FALSE,
        backgroundColor = "white",
        xtitle = "Dose (mg)", ytitle = "length",
        mainTitle = "Plot of length \n by dose")
# Remove grid; Remove Top and right border around the plot
ggplot2.customize(p1, showLegend = FALSE,
        backgroundColor = "white",
        xtitle = "Dose (mg)", ytitle = "length",
        mainTitle = "Plot of length \n by dose",
        removePanelGrid = TRUE,removePanelBorder = TRUE,
        axisLine = c(0.5, "solid", "black"))

ggplot2 boxplot : ggplot2 tutorial on how to use ggplot2.customize function to personalize easily graphics (main title, axis labels, legend, background and color) generated by ggplot2 using r statistical softwareggplot2 boxplot : ggplot2 tutorial on how to use ggplot2.customize function to personalize easily graphics (main title, axis labels, legend, background and color) generated by ggplot2 using r statistical software

Facet : split a plot into a matrix of panels

The approach of facet splits a plot into a matrix of panels. Each panel displays a different subset of the data.

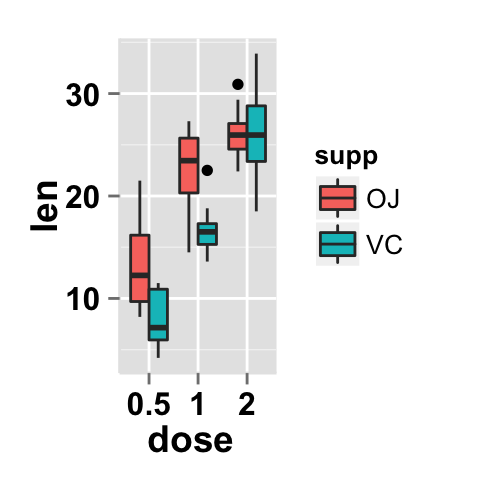

Facet with one variable

# Box plot with multiples groups
p2<- ggplot2.boxplot(data = ToothGrowth,
          xName = "dose", yName = "len", groupName = "supp")
p2

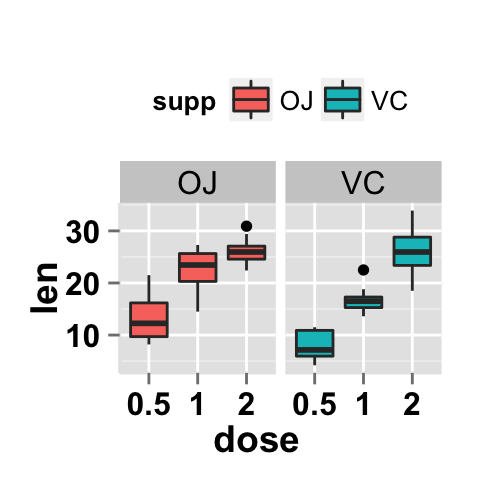

# Facet according to the supp variable

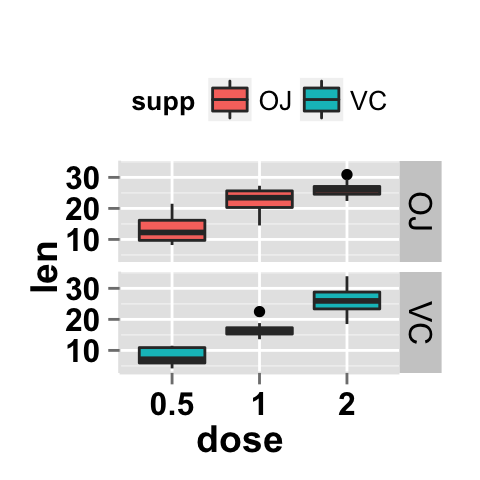

ggplot2.customize(p2, legendPosition = "top",
        faceting = TRUE, facetingVarNames = "supp")
# Change the direction. Possible values are
  # "vertical", horizontal". default is vertical.
ggplot2.customize(p2, legendPosition = "top",
        faceting = TRUE, facetingVarNames = "supp",
        facetingDirection = "horizontal")

ggplot2 boxplot : ggplot2 tutorial on how to use ggplot2.customize function to personalize easily graphics (main title, axis labels, legend, background and color) generated by ggplot2 using r statistical softwareggplot2 boxplot : ggplot2 tutorial on how to use ggplot2.customize function to personalize easily graphics (main title, axis labels, legend, background and color) generated by ggplot2 using r statistical softwareggplot2 boxplot : ggplot2 tutorial on how to use ggplot2.customize function to personalize easily graphics (main title, axis labels, legend, background and color) generated by ggplot2 using r statistical software

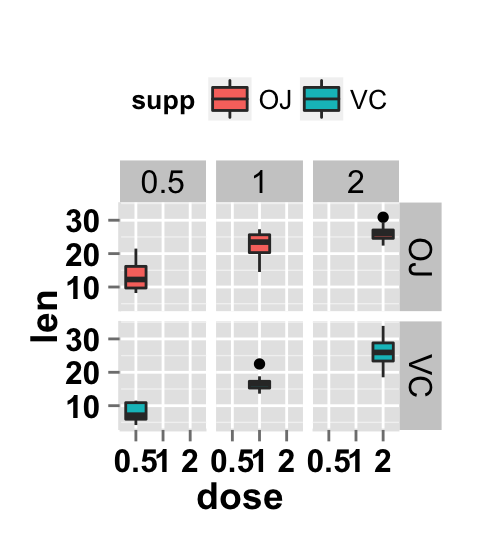

Facet with two variables

# Facet by two variables: dose and supp.
# Rows are dose and columns are supp
ggplot2.customize(p2, legendPosition = "top",
        faceting = TRUE, facetingVarNames = c("dose","supp"))
#Facet by two variables: reverse the order of the 2 variables
#Rows are supp and columns are dose
ggplot2.customize(p2, legendPosition = "top",
        faceting = TRUE, facetingVarNames = c("supp", "dose"))

ggplot2 boxplot : ggplot2 tutorial on how to use ggplot2.customize function to personalize easily graphics (main title, axis labels, legend, background and color) generated by ggplot2 using r statistical softwareggplot2 boxplot : ggplot2 tutorial on how to use ggplot2.customize function to personalize easily graphics (main title, axis labels, legend, background and color) generated by ggplot2 using r statistical software

Facet scales

By default, all the panels have the same scale (facetingScales="fixed"). They can be made independent, by setting scales to free, free_x, or free_y.

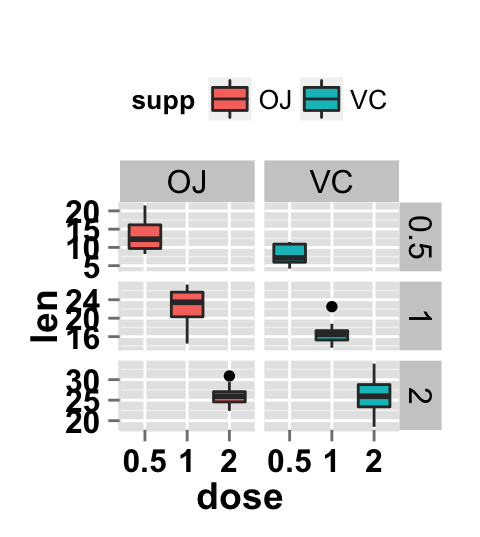

# Facet with free scales
ggplot2.customize(p2, legendPosition = "top",
        faceting = TRUE, facetingVarNames = c("dose", "supp"),
        facetingScales = "free")

ggplot2 boxplot : ggplot2 tutorial on how to use ggplot2.customize function to personalize easily graphics (main title, axis labels, legend, background and color) generated by ggplot2 using r statistical software

y axis have different scales now in the different panels.

Facet label apperance

# Change facet text font. Possible values for the font style:
  #'plain', 'italic', 'bold', 'bold.italic'.

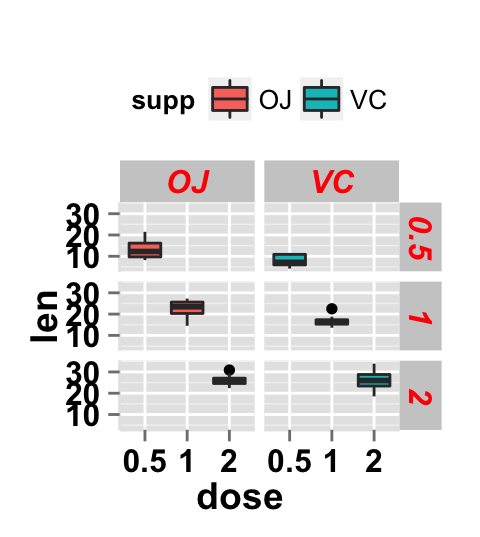

ggplot2.customize(p2, legendPosition = "top",
          faceting = TRUE, facetingVarNames = c("dose","supp"),
          facetingFont = c(12, 'bold.italic', "red"))
#Change the apperance of the rectangle around facet label

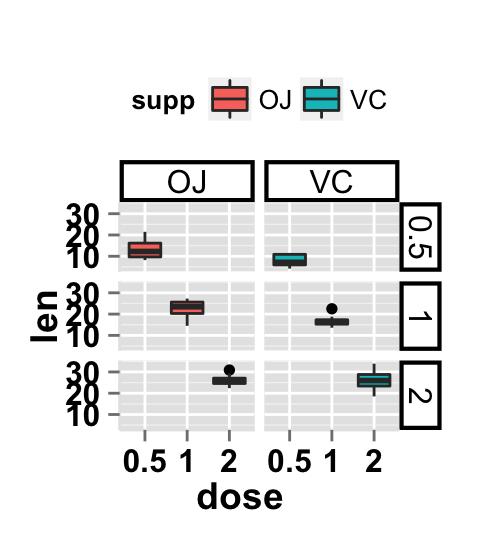

ggplot2.customize(p2, legendPosition = "top",
      faceting = TRUE, facetingVarNames = c("dose","supp"),
      facetingRect = list(background = "white", lineType = "solid",
                        lineColor = "black", lineSize = 1.5)
        )

ggplot2 boxplot : ggplot2 tutorial on how to use ggplot2.customize function to personalize easily graphics (main title, axis labels, legend, background and color) generated by ggplot2 using r statistical softwareggplot2 boxplot : ggplot2 tutorial on how to use ggplot2.customize function to personalize easily graphics (main title, axis labels, legend, background and color) generated by ggplot2 using r statistical software

ggplot2.customize function

Description

Customize easily a plot generated with either easyGgplot2 or ggplot2 R packages.

usage

ggplot2.boxplot(plot,...)

Arguments

plot : A plot object generated with ggplot2 or easyGgplot2 package (boxplot, density plot, histogram, dotplot, etc ….)

: Any argument from the list of the arguments indicated below.

The other arguments which can be used are shown in the table below. They are used to customize the plot (axis, title,** background, color, legend**, ….) generated by easyGgplot2 and ggplot2.

Arguments Descriptions
Customize plot title
mainTitle Title of the plot.
mainTitleFont A vector of length 3 indicating respectively the size, the style and the color of main title. Possible values for font style are “plain”, “italic”, “bold”, “bold.italic”. Color can be specified as an hexadecimal code (e.g: “#FFCC00”) or by the name (e.g : “red”, “green”). Default value is: mainTitleFont=c(14, “bold”, “black”).
Customize x and y axis
xShowTitle, yShowTitle if TRUE, x axis and y axis titles will be shown. Default values are TRUE.
xtitle, ytitle x and y axis labels.
xtitleFont, ytitleFont A vector of length 3 indicating respectively the size, the style and the color of x and y axis titles. Default values are c(14,“bold”, “black”).
xlim, ylim Limit for the x and y axis. Default values are NULL.
xScale, yScale x and y axis scales. Possible values are c(“none”, “log2”, “log10”). Example: yScale = “log2”. Default values are “none”.
xShowTickLabel, yShowTickLabel if TRUE, x and y axis tick mark labels will be shown. Default values are TRUE.
xTickLabelFont, yTickLabelFont A vector of length 3 indicating respectively the size, the style and the color of x and y axis tick label fonts. Default values are c(12, “bold”, “black”).
xtickLabelRotation, ytickLabelRotation Rotation angle of x and y axis tick labels. Default values are 0.
hideAxisTicks if TRUE, x and y axis ticks are removed. Default value is FALSE.
axisLine A vector of length 3 indicating respectively the size, the line type and the color of axis lines. Default value is c(0.5, “solid”, “#E5E5E5”).
Customize plot background
removePanelBorder if TRUE, the top-right border of the plot are removed. Default value is FALSE.
removePanelGrid if TRUE, panel grids are removed. Default value is FALSE.
backgroundColor background color of plot panel. Default value is “gray”.
gridColor Color of plot panel grids. Default value is “white”.
Customize plot legend
showLegend if TRUE, plot legend will be shown. Default value is TRUE.
legendPosition Position of legend box. Default value is “right”. Possible values for legend position are “right”, “left”,“top”, “bottom”. LegendPosition can be also a numeric vector c(x, y) indicating the coordinate of legend box. x and y values must be between 0 and 1. c(0,0) corresponds to the “bottom left” and c(1,1) corresponds to the “top right” position.
legendBackground A vector of length 4 indicating boxFill, boxLineSize, boxLineType, boxLineColor. Default value is legendBackground = c(“#FFFFFF”, 0.5, “blank”, “black” ).
legendTextFont A vector of length 3 indicating respectively the size, the style and the color of legend text. Default value is c(10, “plain”, “black”). Possible values for font style are “plain”, “italic”, “bold”, “bold.italic”.
legendTitleFont A vector of length 3 indicating respectively the size, the style and the color of legend title. Default value is c(10, “plain”, “black”)
legendItemOrder Character vector indicating the order of items in the legends. Example: c(“2”, “1”, “0.5”)
Faceting : split a plot into a matrix of panels
faceting if TRUE, the data are split up by one or two variables and graphs are displayed in different panels. In this case, you have to indicate the facetingVarNames. Default value is FALSE.
facetingVarNames the names of the columns containing variables to use for faceting. Default value is NULL.
facetingDirection possibles values are “vertical” and “horizontal”. Default value is vertical. Default value is “vertical”.
facetingScales By default, all the panels have the same scale (facetingScales = "fixed"). They can be made independent, by setting scales to “free”, “free_x”, or “free_y”. Default value is “fixed”.
facetingFont Change facet label appearance. A vector of length 3 indicating respectively the size, the font style and the color of the text. Default value is facetingFont = c(size = 12, font = “plain”, color = “black”).
facetingRect Modify the appearance of the rectangle around the facet label.Default value is list(background = NULL, lineType = NULL, lineColor = NULL, lineSize = NULL).
facetingTextAngles Modify the facet label text orientation. It indicates the angles of the x and y texts (in [0, 360]). Default value is c(NULL, NULL).
Others
orientation Change the orientation of the plot. Possible values are c(“standard”, “horizontal”, “yAxisReversed”). Default value is “standard”.

Possible values for font style are “plain”, “italic”, “bold”, “bold.italic”.

Examples

plot<-ggplot2.boxplot(data = ToothGrowth,
              xName = 'dose', yName = 'len')
plot<-ggplot2.customize(plot, mainTitle = "Plot of length \n by dose",
            xtitle = "Dose (mg)", ytitle = "Length")
print(plot)


Easy ggplot2 ebook

Note that an eBook is available on easyGgplot2 package here.

By Alboukadel Kassambara

Copyright 2014 Alboukadel Kassambara. All rights reserved.

Published by STHDA (http://www.sthda.com/english).

September 2014 : First edition.

Licence : This document is under creative commons licence (http://creativecommons.org/licenses/by-nc-sa/3.0/).

Contact : Alboukadel Kassambara alboukadel.kassambara@gmail.com


Infos

This analysis was performed using R (ver. 3.1.0), easyGgplot2 (ver 1.0.0) and ggplot2 (ver 1.0.0).


Enjoyed this article? I’d be very grateful if you’d help it spread by emailing it to a friend, or sharing it on Twitter, Facebook or Linked In.

Show me some love with the like buttons below... Thank you and please don't forget to share and comment below!!
Avez vous aimé cet article? Je vous serais très reconnaissant si vous aidiez à sa diffusion en l'envoyant par courriel à un ami ou en le partageant sur Twitter, Facebook ou Linked In.

Montrez-moi un peu d'amour avec les like ci-dessous ... Merci et n'oubliez pas, s'il vous plaît, de partager et de commenter ci-dessous!





This page has been seen 41723 times
