ggplot2 rotate a graph : reverse and flip the plot

Horizontal plot : coord_flip()
Reverse y axis
Infos

The aim of this R tutorial is to describe how to rotate a plot created using R software and ggplot2 package.

The functions are :

coord_flip() to create horizontal plots
scale_x_reverse(), scale_y_reverse() to reverse the axes

Horizontal plot : coord_flip()

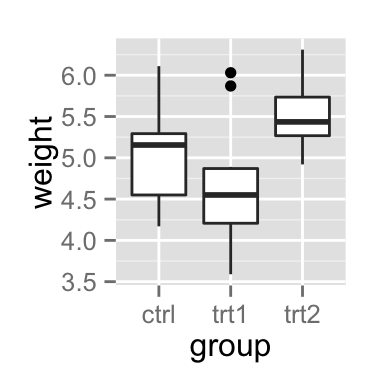

Box plot :

library(ggplot2)
# Basic box plot
bp <- ggplot(PlantGrowth, aes(x=group, y=weight))+
  geom_boxplot()
bp
# Horizontal box plot
bp + coord_flip()

ggplot2 and R software, reverse and flip the plot

Histogram :

set.seed(1234)

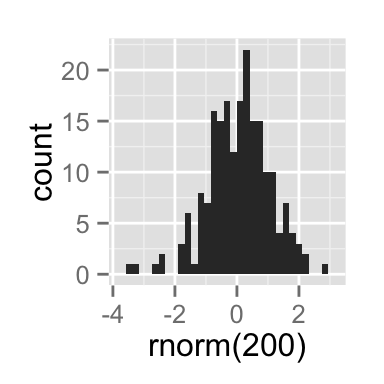

# Basic histogram
hp <-qplot(x=rnorm(200), geom="histogram")
hp

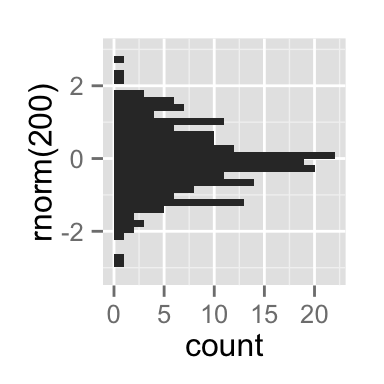

# Horizontal histogram
hp + coord_flip()

ggplot2 and R software, reverse and flip the plot

Reverse y axis

The function scale_y_reverse() can be used as follow :

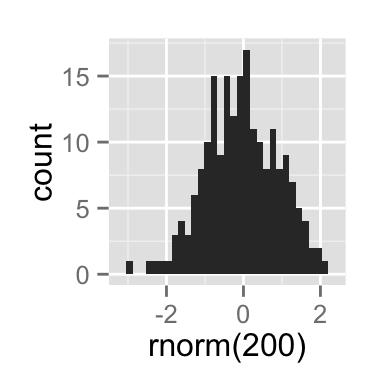

# Basic histogram
hp

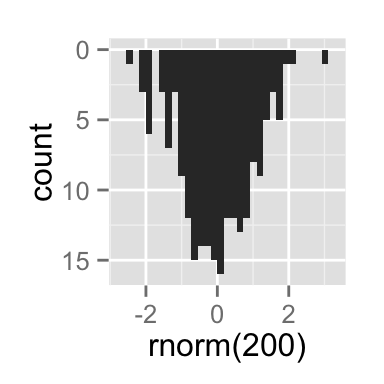

# Y axis reversed
hp + scale_y_reverse()

ggplot2 and R software, reverse and flip the plot

Infos

This analysis has been performed using R software (ver. 3.1.2) and ggplot2 (ver. )
