Data

ToothGrowth data is used in the following examples.

# Convert dose from numeric to factor variables
ToothGrowth$dose <- as.factor(ToothGrowth$dose)
df <- ToothGrowth
head(df)

##    len supp dose
## 1  4.2   VC  0.5
## 2 11.5   VC  0.5
## 3  7.3   VC  0.5
## 4  5.8   VC  0.5
## 5  6.4   VC  0.5
## 6 10.0   VC  0.5

Make sure that the variable dose is converted as a factor using the above R script.

Basic box plot

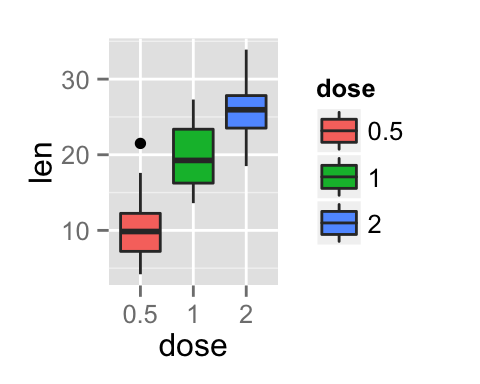

Create a basic box plot filled by groups :

library(ggplot2)
bp <- ggplot(df, aes(x=dose, y=len, group=dose)) +
  geom_boxplot(aes(fill=dose))
bp

Facet with one variable

The graph is partitioned in multiple panels by levels of the group “supp”:

# Split in vertical direction

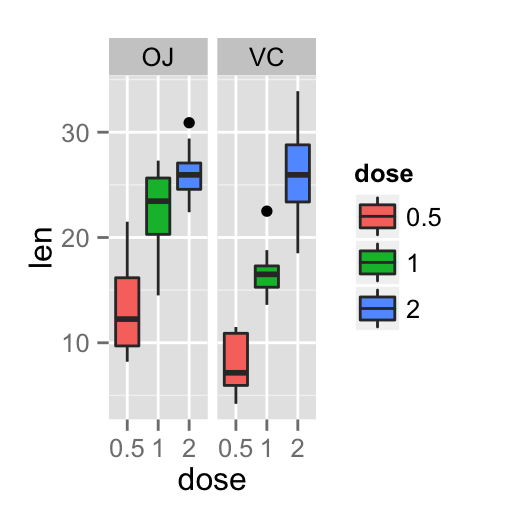

bp + facet_grid(supp ~ .)
# Split in horizontal direction
bp + facet_grid(. ~ supp)

Facet with two variables

The graph is partitioned by the levels of the groups “dose” and “supp” :

# Facet by two variables: dose and supp.
# Rows are dose and columns are supp

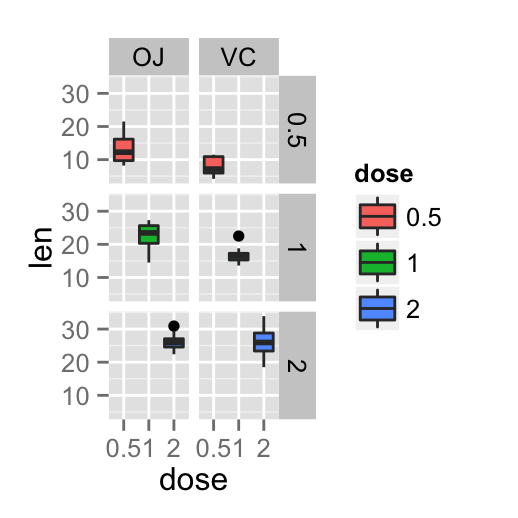

bp + facet_grid(dose ~ supp)
# Facet by two variables: reverse the order of the 2 variables
# Rows are supp and columns are dose

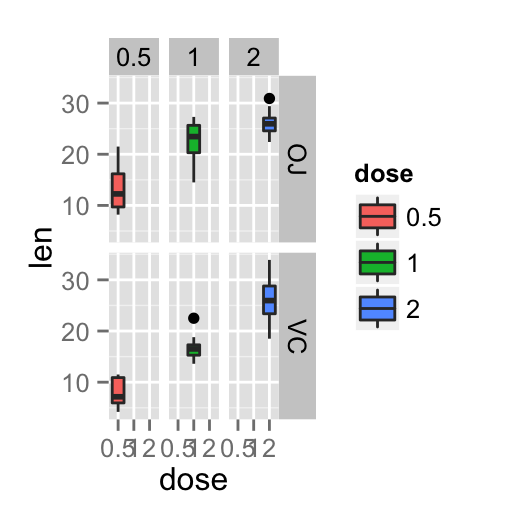

bp + facet_grid(supp ~ dose)

Note that, you can use the argument margins to add additional facets which contain all the data for each of the possible values of the faceting variables

bp + facet_grid(dose ~ supp, margins=TRUE)

Facet scales

By default, all the panels have the same scales (scales="fixed"). They can be made independent, by setting scales to free, free_x, or free_y.

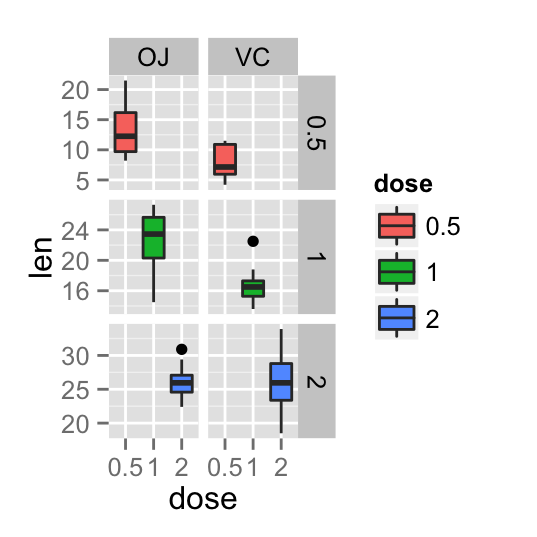

bp + facet_grid(dose ~ supp, scales='free')

As you can see in the above plot, y axis have different scales in the different panels.

Facet labels

The argument labeller can be used to control the labels of the panels :

bp + facet_grid(dose ~ supp, labeller=label_both)

The appearance of facet labels can be modified as follow :

# Change facet text font. Possible values for the font style:
  #'plain', 'italic', 'bold', 'bold.italic'.
bp + facet_grid(dose ~ supp)+
    theme(strip.text.x = element_text(size=12, color="red",
                                      face="bold.italic"),
          strip.text.y = element_text(size=12, color="red",
                                      face="bold.italic"))
# Change the apperance of the rectangle around facet label

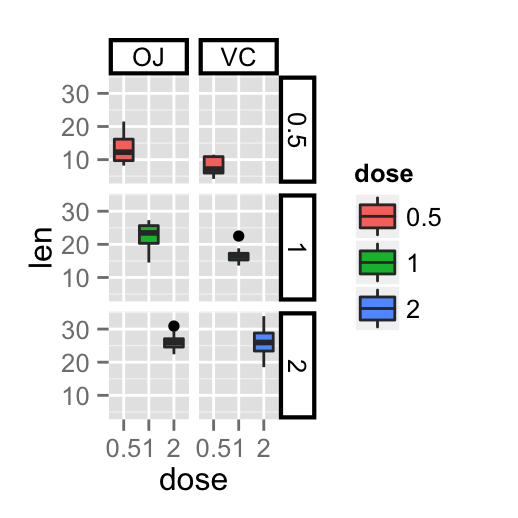

bp + facet_grid(dose ~ supp)+
 theme(strip.background = element_rect(colour="black", fill="white",
                                       size=1.5, linetype="solid"))

facet_wrap

Facets can be placed side by side using the function facet_wrap() as follow :

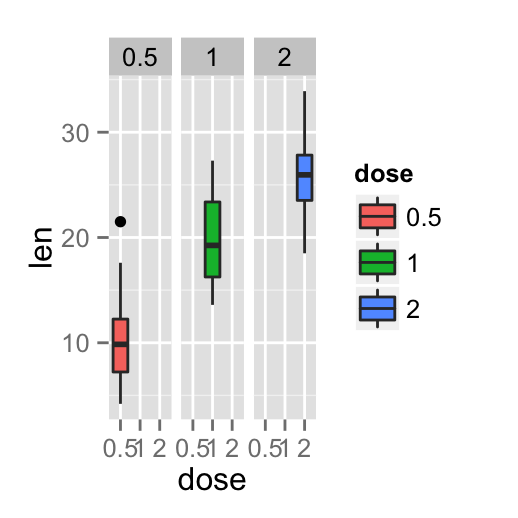

bp + facet_wrap(~ dose)

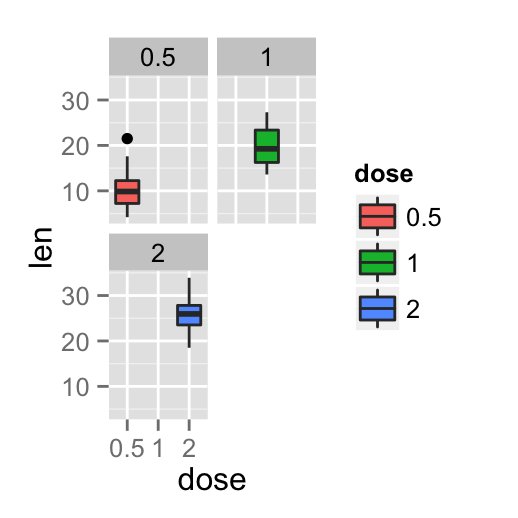

bp + facet_wrap(~ dose, ncol=2)

Infos

This analysis has been performed using R software (ver. 3.1.2) and ggplot2 (ver. 1.0.0)
