ggplot2 axis ticks : A guide to customize tick marks and labels


The goal of this tutorial is to describe how to customize axis tick marks and labels in R software using ggplot2 package.


Data

ToothGrowth data is used in the examples hereafter.

# Convert dose column from numeric to factor variable
ToothGrowth$dose <- as.factor(ToothGrowth$dose)
head(ToothGrowth)
##    len supp dose
## 1  4.2   VC  0.5
## 2 11.5   VC  0.5
## 3  7.3   VC  0.5
## 4  5.8   VC  0.5
## 5  6.4   VC  0.5
## 6 10.0   VC  0.5

Make sure that dose column are converted as a factor using the above R script.

Example of plots

library(ggplot2)
p <- ggplot(ToothGrowth, aes(x=dose, y=len)) + geom_boxplot()
p

ggplot2 axis ticks, axis tick labels, R programming

Change the appearance of the axis tick mark labels

The color, the font size and the font face of axis tick mark labels can be changed using the functions theme() and element_text() as follow :

# x axis tick mark labels
p + theme(axis.text.x= element_text(family, face, colour, size))
# y axis tick mark labels
p + theme(axis.text.y = element_text(family, face, colour, size))

The following arguments can be used for the function element_text() to change the appearance of the text :


  • family : font family
  • face : font face. Possible values are “plain”, “italic”, “bold” and “bold.italic”
  • colour : text color
  • size : text size in pts
  • angle : angle (in [0, 360])


# Change the appearance and the orientation angle
# of axis tick labels
p + theme(axis.text.x = element_text(face="bold", color="#993333",
                           size=14, angle=45),
          axis.text.y = element_text(face="bold", color="#993333",
                           size=14, angle=45))

ggplot2 axis ticks, axis tick labels, R programming

Hide x and y axis tick mark labels

axis ticks and tick mark labels can be removed using the function element_blank() as follow :

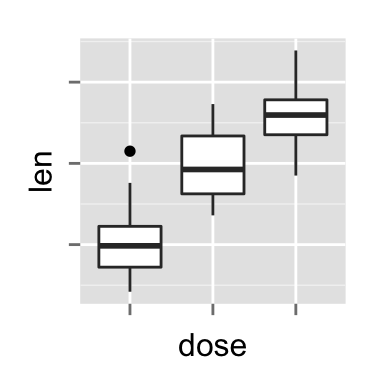

# Hide x an y axis tick mark labels
p + theme(
  axis.text.x = element_blank(),
  axis.text.y = element_blank())

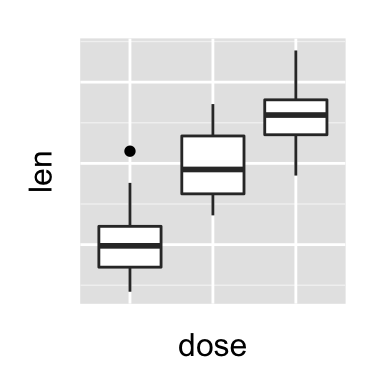

# Remove axis ticks and tick mark labels
p + theme(
  axis.text.x = element_blank(),
  axis.text.y = element_blank(),
  axis.ticks = element_blank())

ggplot2 axis ticks, axis tick labels, R programmingggplot2 axis ticks, axis tick labels, R programming

Change axis lines

Axis lines can be changed using the function element_line() as follow :

p + theme(axis.line = element_line(colour, size, linetype,
                                   lineend, color))

The arguments of element_line() are :


  • colour, color : line color
  • size : line size
  • linetype : line type. Line type can be specified using either text (“blank”, “solid”, “dashed”, “dotted”, “dotdash”, “longdash”, “twodash”) or number (0, 1, 2, 3, 4, 5, 6). Note that linetype = “solid” is identical to linetype=1. The available line types in R are described in this post : Line type in R software
  • lineend : line end. Allowed values for line end are : “round”, “butt” or “square”

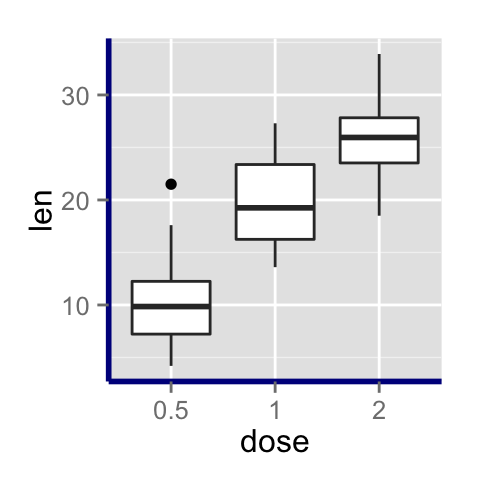

# Change the line type and color of axis lines
p + theme( axis.line = element_line(colour = "darkblue",
                      size = 1, linetype = "solid"))

ggplot2 axis ticks, axis tick labels, R programming

Set axis ticks for discrete and continuous axes

x or y axis can be discrete or continuous. In each of these two cases, the functions to be used for setting axis ticks are different.

Customize a discrete axis

The functions scale_x_discrete() and scale_y_discrete() are used to customize discrete x and y axis, respectively.

It is possible to use these functions to change the following x or y axis parameters :

  • axis titles
  • axis limits (data range to display)
  • choose where tick marks appear
  • manually label tick marks

The simplified formats of scale_x_discrete() and scale_y_discrete() are :

scale_x_discrete(name, breaks, labels, limits)
scale_y_discrete(name, breaks, labels, limits)

  • name : x or y axis labels
  • breaks : control the breaks in the guide (axis ticks, grid lines, …). Among the possible values, there are :
    • NULL : hide all breaks
    • waiver() : the default break computation
    • a character or numeric vector specifying which breaks to display
  • labels : labels of axis tick marks. Allowed values are :
    • NULL for no labels
    • waiver() for the default labels
    • character vector to be used for break labels
  • limits : a character vector indicating the data range


Note that, in the examples below, we’ll use only the functions scale_x_discrete() and xlim() to customize x axis tick marks. The same kind of examples can be applied to a discrete y axis using the functions scale_y_discrete() and ylim().

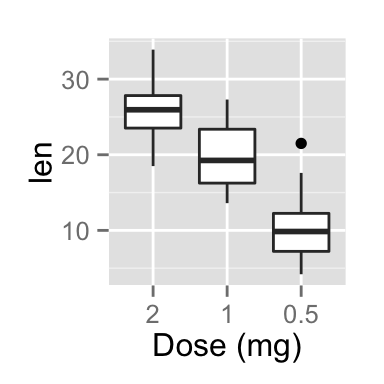

Change the order of items

The argument limits is used to change the order of the items :

# default plot
p
# Change the order of items
# Change the x axis name
p + scale_x_discrete(name ="Dose (mg)",
                    limits=c("2","1","0.5"))

ggplot2 axis ticks, axis tick labels, R programmingggplot2 axis ticks, axis tick labels, R programming

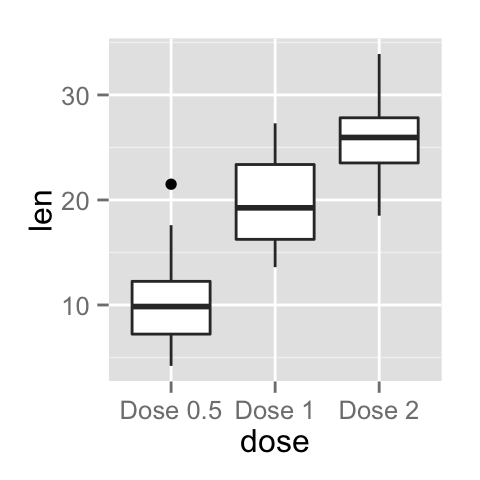

Change tick mark labels

The name of tick mark texts can be changed as follow :

# Solution 1
p + scale_x_discrete(breaks=c("0.5","1","2"),
        labels=c("Dose 0.5", "Dose 1", "Dose 2"))
# Solution 2 : same plot as solution 1
p + scale_x_discrete(labels=c("0.5" = "Dose 0.5", "1" = "Dose 1",
                              "2" = "Dose 2"))

ggplot2 axis ticks, axis tick labels, R programmingggplot2 axis ticks, axis tick labels, R programming

Choose which items to display

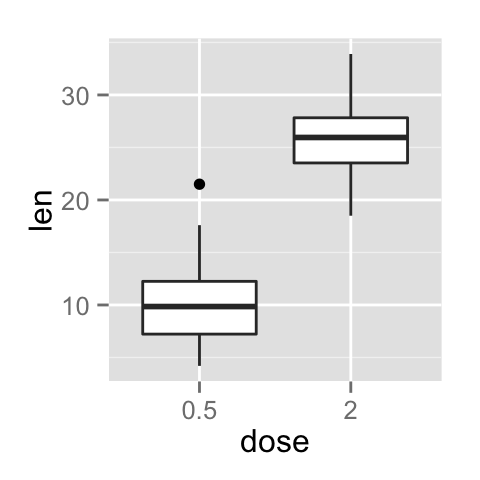

The R code below shows the box plot for the first item (dose = 0.5) and the last item (dose = 2) :

# Solution 1
p + scale_x_discrete(limits=c("0.5", "2"))
# Solution 2 : same result as solution 1
p + xlim("0.5", "2")

ggplot2 axis ticks, axis tick labels, R programmingggplot2 axis ticks, axis tick labels, R programming

Customize a continuous axis

The functions scale_x_continuous() and scale_y_continuous() are used to customize continuous x and y axis, respectively.

Using these two functions, the following x or y axis parameters can be modified :

  • axis titles
  • axis limits (set the minimum and the maximum)
  • choose where tick marks appear
  • manually label tick marks

The simplified formats of scale_x_continuous() and scale_y_continuous() are :

scale_x_continuous(name, breaks, labels, limits, trans)
scale_y_continuous(name, breaks, labels, limits, trans)

  • name : x or y axis labels
  • breaks : control the breaks in the guide (axis ticks, grid lines, …). Among the possible values, there are :
    • NULL : hide all breaks
    • waiver() : the default break computation
    • a character or numeric vector specifying the breaks to display
  • labels : labels of axis tick marks. Allowed values are :
    • NULL for no labels
    • waiver() for the default labels
    • character vector to be used for break labels
  • limits : a numeric vector specifying x or y axis limits (min, max)
  • trans for axis transformations. Possible values are “log2”, “log10”, “sqrt”, etc


These functions can be used as follow :

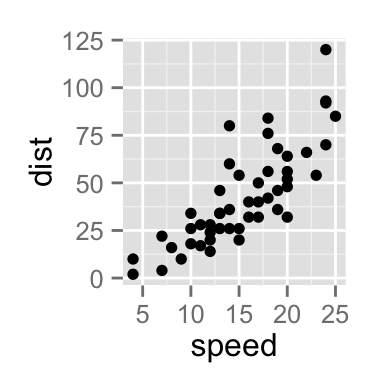

# scatter plot
sp<-ggplot(cars, aes(x = speed, y = dist)) + geom_point()
sp

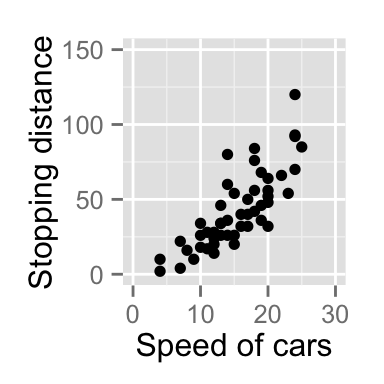

# Change x and y axis labels, and limits
sp + scale_x_continuous(name="Speed of cars", limits=c(0, 30)) +
  scale_y_continuous(name="Stopping distance", limits=c(0, 150))

ggplot2 axis ticks, axis tick labels, R programmingggplot2 axis ticks, axis tick labels, R programming

Set the position of tick marks

The R code below set the position of tick marks on the y axis of the box plot. The function scale_y_continuous() and the argument breaks are used to choose where the tick marks appear :

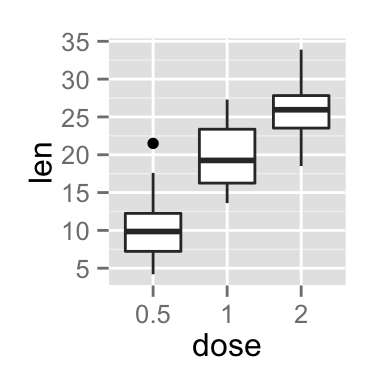

# Set tick marks on y axis
# a tick mark is shown on every 5
p + scale_y_continuous(breaks=seq(0,40,5))

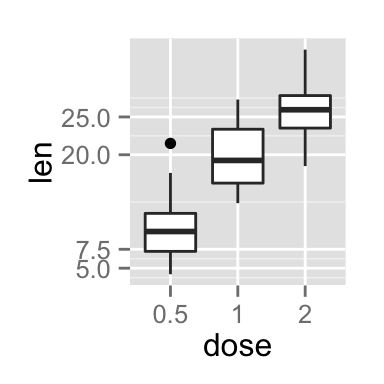

# Tick marks can be spaced randomly
p + scale_y_continuous(breaks=c(5,7.5, 20, 25))

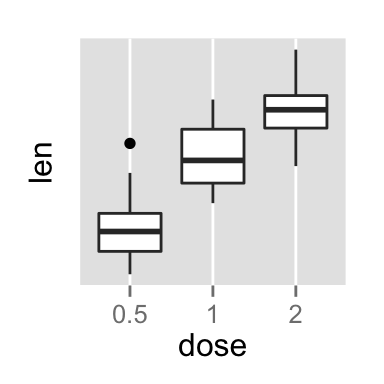

# Remove tick mark labels and gridlines
p + scale_y_continuous(breaks=NULL)

ggplot2 axis ticks, axis tick labels, R programmingggplot2 axis ticks, axis tick labels, R programmingggplot2 axis ticks, axis tick labels, R programming

Format the text of tick mark labels

Tick mark labels can be formatted to be viewed as percents, dollars or scientific notation. The package scales is required.

library(scales)

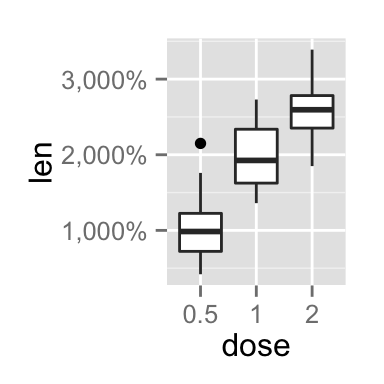

# Format labels as percents
p + scale_y_continuous(labels = percent)

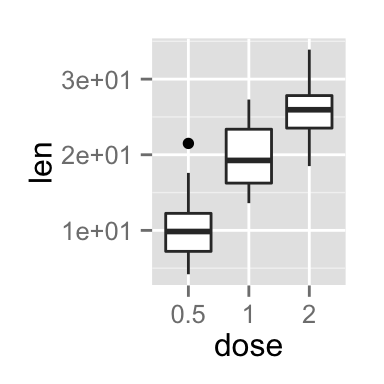

# Format labels as scientific
p + scale_y_continuous(labels = scientific)

ggplot2 axis ticks, axis tick labels, R programmingggplot2 axis ticks, axis tick labels, R programming

Possible values for labels are comma, percent, dollar and scientific. For more examples, read the documentation of the package scales : ?scales::trans_new

Infos

This analysis has been performed using R software (ver. 3.1.2) and ggplot2 (ver. )
