Row profiles

The profile of a given row is calculated by taking each row point and dividing by its margin (i.e, the sum of all row points). The formula is:

\[ row.profile = \frac{row}{row.sum} \]

For example the profile of the row point Laundry/wife is P = 156/176 = 88.6%.

The R code below can be used to compute row profiles:

row.profile <- housetasks/row.sum
# head(row.profile)

The average row profile is computed as follow:

\[ average.rp = \frac{column.sum}{grand.total} \]

For example, the average row profile is : (600/1744, 254/1744, 381/1744, 509/1744). It can be computed in R as follow:

# Column sums
col.sum <- apply(housetasks, 2, sum)
# average row profile = Column sums / grand total
average.rp <- col.sum/n
average.rp

##        Wife Alternating     Husband     Jointly
##       0.344       0.146       0.218       0.292

Distance (or similarity) between row profiles

If we want to compare 2 rows (row1 and row2), we need to compute the squared distance between their profiles as follow:

\[ d^2(row_1, row_2) = \sum{\frac{(row.profile_1 - row.profile_2)^2}{average.profile}} \]

For example the distance between the rows Laundry and Main_meal are:

\[ d^2(Laundry, Main\_meal) = \frac{(0.886-0.810)^2}{0.344} + \frac{(0.0795-0.131)^2}{0.146} + ... = 0.036 \]

The distance between Laundry and Main_meal can be calculated as follow in R:

# Laundry and Main_meal profiles
laundry.p <- row.profile["Laundry",]
main_meal.p <- row.profile["Main_meal",]
# Distance between Laundry and Main_meal
d2 <- sum(((laundry.p - main_meal.p)^2) / average.rp)
d2

## [1] 0.0368

The distance between Laundry and Driving is:

# Driving profile
driving.p <- row.profile["Driving",]
# Distance between Laundry and Driving
d2 <- sum(((laundry.p - driving.p)^2) / average.rp)
d2

## [1] 3.77

Squared distance between each row profile and the average row profile

\[ d^2(row_i, average.profile) = \sum{\frac{(row.profile_i - average.profile)^2}{average.profile}} \]

The R code below computes the distance from the average profile for all the row variables:

d2.row <- apply(row.profile, 1,
        function(row.p, av.p){sum(((row.p - av.p)^2)/av.p)},
        average.rp)
as.matrix(round(d2.row,3))

##             [,1]
## Laundry    1.329
## Main_meal  1.034
## Dinner     0.618
## Breakfeast 0.512
## Tidying    0.353
## Dishes     0.302
## Shopping   0.218
## Official   0.968
## Driving    1.274
## Finances   0.456
## Insurance  0.727
## Repairs    3.307
## Holidays   2.140

Distance matrix

In this section the squared distance is computed between each row profile and the other rows in the contingency table.

The result is a distance matrix (a kind of correlation or dissimilarity matrix).

The custom R function below is used to compute the distance matrix:

## data: a data frame or matrix;
## average.profile: average profile
dist.matrix <- function(data, average.profile){
   mat <- as.matrix(t(data))
    n <- ncol(mat)
    dist.mat<- matrix(NA, n, n)
    diag(dist.mat) <- 0
    for (i in 1:(n - 1)) {
        for (j in (i + 1):n) {
            d2 <- sum(((mat[, i] - mat[, j])^2) / average.profile)
            dist.mat[i, j] <- dist.mat[j, i] <- d2
        }
    }
  colnames(dist.mat) <- rownames(dist.mat) <- colnames(mat)
  dist.mat
}

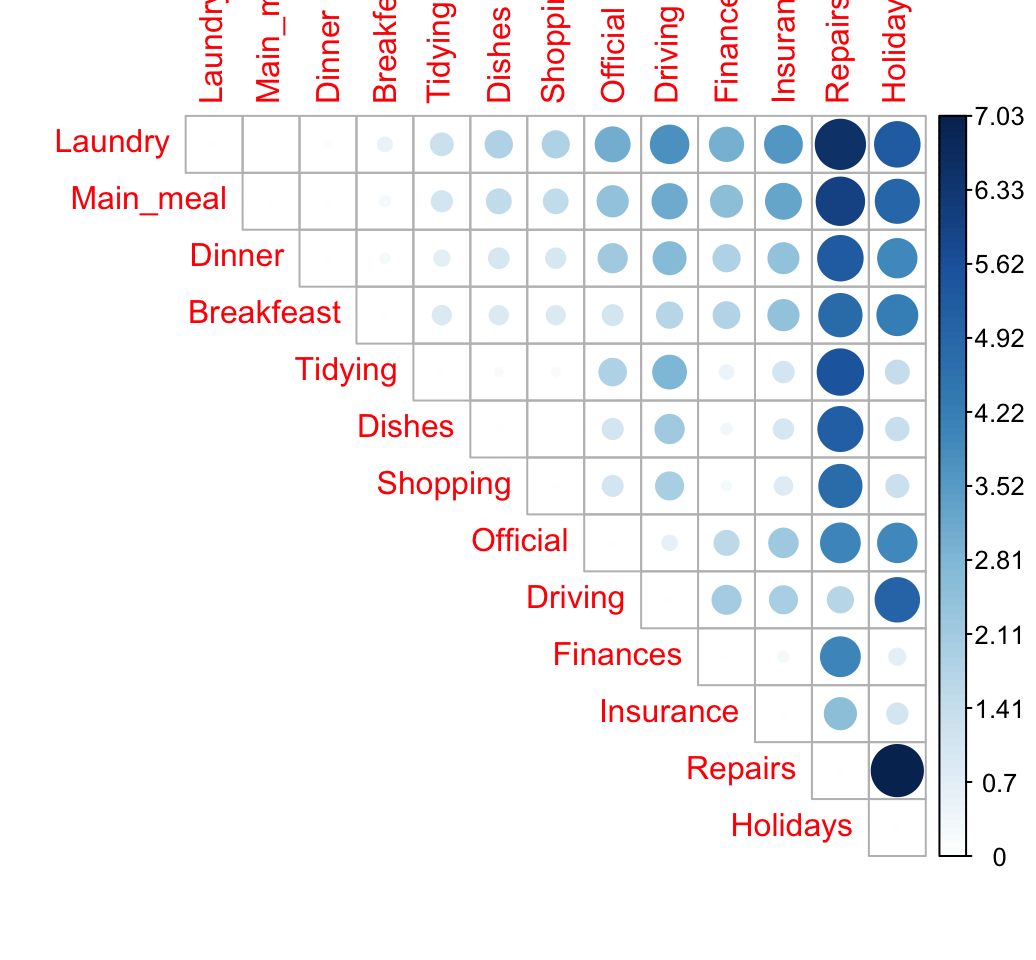

Compute and visualize the distance between row profiles. The package corrplot is required for the visualization. It can be installed as follow: install.packages("corrplot").

# Distance matrix
dist.mat <- dist.matrix(row.profile, average.rp)
dist.mat <-round(dist.mat, 2)
# Visualize the matrix
library("corrplot")
corrplot(dist.mat, type="upper",  is.corr = FALSE)

Row mass and inertia

The Row mass (or row weight) is the total frequency of a given row. It’s calculated as follow:

\[ row.mass = \frac{row.sum}{grand.total} \]

row.sum <- apply(housetasks, 1, sum)
grand.total <- sum(housetasks)
row.mass <- row.sum/grand.total
head(row.mass)

##    Laundry  Main_meal     Dinner Breakfeast    Tidying     Dishes
##     0.1009     0.0877     0.0619     0.0803     0.0700     0.0648

The row inertia is calculated as the row mass multiplied by the squared distance between the row and the average row profile:

\[ row.inertia = row.mass * d^2(row) \]

# Row inertia
row.inertia <- row.mass * d2.row
head(row.inertia)

##    Laundry  Main_meal     Dinner Breakfeast    Tidying     Dishes
##     0.1342     0.0907     0.0382     0.0411     0.0247     0.0196

# Total inertia
sum(row.inertia)

## [1] 1.11

Row summary

The result for rows can be summarized as follow:

row <- cbind.data.frame(d2 = d2.row, mass = row.mass, inertia = row.inertia)
round(row,3)

##               d2  mass inertia
## Laundry    1.329 0.101   0.134
## Main_meal  1.034 0.088   0.091
## Dinner     0.618 0.062   0.038
## Breakfeast 0.512 0.080   0.041
## Tidying    0.353 0.070   0.025
## Dishes     0.302 0.065   0.020
## Shopping   0.218 0.069   0.015
## Official   0.968 0.055   0.053
## Driving    1.274 0.080   0.102
## Finances   0.456 0.065   0.030
## Insurance  0.727 0.080   0.058
## Repairs    3.307 0.095   0.313
## Holidays   2.140 0.092   0.196

Column profiles

These are calculated in the same way as the row profiles table.

The profile of a given column is computed as follow:

\[ col.profile = \frac{col}{col.sum} \]

The R code below can be used to compute column profile:

col.profile <- t(housetasks)/col.sum
col.profile <- as.data.frame(t(col.profile))
# head(col.profile)

The average column profile is calculated as follow:

\[ average.cp = row.sum/grand.total \]

For example, the average column profile is : (176/1744, 153/1744, 108/1744, 140/1744, …). It can be computed in R as follow:

# Row sums
row.sum <- apply(housetasks, 1, sum)
# average column profile= row sums/grand total
average.cp <- row.sum/n
head(average.cp)

##    Laundry  Main_meal     Dinner Breakfeast    Tidying     Dishes
##     0.1009     0.0877     0.0619     0.0803     0.0700     0.0648

Distance (similarity) between column profiles

If we want to compare columns, we need to compute the squared distance between their profiles as follow:

\[ d^2(col_1, col_2) = \sum{\frac{(col.profile_1 - col.profile_2)^2}{average.profile}} \]

For example the distance between the columns Wife and Husband are:

\[ d^2(Wife, Husband) = \frac{(0.26-0.005)^2}{0.10} + \frac{(0.21-0.013)^2}{0.09} + ... + ... = 4.05 \]

The distance between Wife and Husband can be calculated as follow in R:

# Wife and Husband profiles
wife.p <- col.profile[, "Wife"]
husband.p <- col.profile[, "Husband"]
# Distance between Wife and Husband
d2 <- sum(((wife.p - husband.p)^2) / average.cp)
d2

## [1] 4.05

Squared distance between each column profile and the average column profile

\[ d^2(col_i, average.profile) = \sum{\frac{(col.profile_i - average.profile)^2}{average.profile}} \]

The R code below computes the distance from the average profile for all the column variables

d2.col <- apply(col.profile, 2,
        function(col.p, av.p){sum(((col.p - av.p)^2)/av.p)},
        average.cp)
round(d2.col,3)

##        Wife Alternating     Husband     Jointly
##       0.875       0.809       1.746       1.078

Distance matrix

# Distance matrix
dist.mat <- dist.matrix(t(col.profile), average.cp)
dist.mat <-round(dist.mat, 2)
dist.mat

##             Wife Alternating Husband Jointly
## Wife        0.00        1.71    4.05    2.93
## Alternating 1.71        0.00    2.67    2.58
## Husband     4.05        2.67    0.00    3.70
## Jointly     2.93        2.58    3.70    0.00

# Visualize the matrix
library("corrplot")
corrplot(dist.mat, type="upper", order="hclust", is.corr = FALSE)

column mass and inertia

The column mass(or column weight) is the total frequency of each column. It’s calculated as follow:

\[ col.mass = \frac{col.sum}{grand.total} \]

col.sum <- apply(housetasks, 2, sum)
grand.total <- sum(housetasks)
col.mass <- col.sum/grand.total
head(col.mass)

##        Wife Alternating     Husband     Jointly
##       0.344       0.146       0.218       0.292

The column inertia is calculated as the column mass multiplied by the squared distance between the column and the average column profile:

\[ col.inertia = col.mass * d^2(col) \]

col.inertia <- col.mass * d2.col
head(col.inertia)

##        Wife Alternating     Husband     Jointly
##       0.301       0.118       0.381       0.315

# total inertia
sum(col.inertia)

## [1] 1.11

Column summary

The result for rows can be summarized as follow:

col <- cbind.data.frame(d2 = d2.col, mass = col.mass,
                        inertia = col.inertia)
round(col,3)

##                d2  mass inertia
## Wife        0.875 0.344   0.301
## Alternating 0.809 0.146   0.118
## Husband     1.746 0.218   0.381
## Jointly     1.078 0.292   0.315

Chi-square test

Chi-square test issued to examine whether rows and columns of a contingency table are statistically significantly associated.

• Null hypothesis (H0): the row and the column variables of the contingency table are independent.
• Alternative hypothesis (H1): row and column variables are dependent

For each cell of the table, we have to calculate the expected value under null hypothesis.

For a given cell, the expected value is calculated as follow:

\[ e = \frac{row.sum * col.sum}{grand.total} \]

The Chi-square statistic is calculated as follow:

\[ \chi^2 = \sum{\frac{(o - e)^2}{e}} \]

• o is the observed value
• e is the expected value

This calculated Chi-square statistic is compared to the critical value (obtained from statistical tables) with \(df = (r - 1)(c - 1)\) degrees of freedom and p = 0.05.

• r is the number of rows in the contingency table
• c is the number of column in the contingency table

If the calculated Chi-square statistic is greater than the critical value, then we must conclude that the row and the column variables are not independent of each other. This implies that they are significantly associated.

Chi-square statistic can be easily computed using the function chisq.test() as follow:

chisq <- chisq.test(housetasks)
chisq

##
##  Pearson's Chi-squared test
##
## data:  housetasks
## X-squared = 2000, df = 40, p-value <2e-16

In our example, the row and the column variables are statistically significantly associated (p-value = 0)

The observed and the expected counts can be extracted from the result of the test as follow:

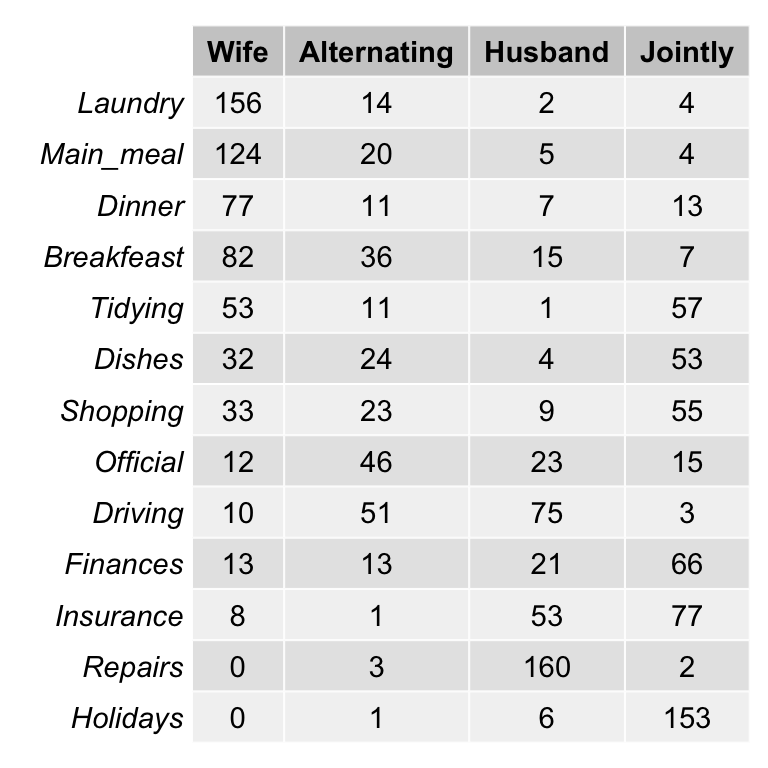

# Observed counts
chisq$observed

##            Wife Alternating Husband Jointly
## Laundry     156          14       2       4
## Main_meal   124          20       5       4
## Dinner       77          11       7      13
## Breakfeast   82          36      15       7
## Tidying      53          11       1      57
## Dishes       32          24       4      53
## Shopping     33          23       9      55
## Official     12          46      23      15
## Driving      10          51      75       3
## Finances     13          13      21      66
## Insurance     8           1      53      77
## Repairs       0           3     160       2
## Holidays      0           1       6     153

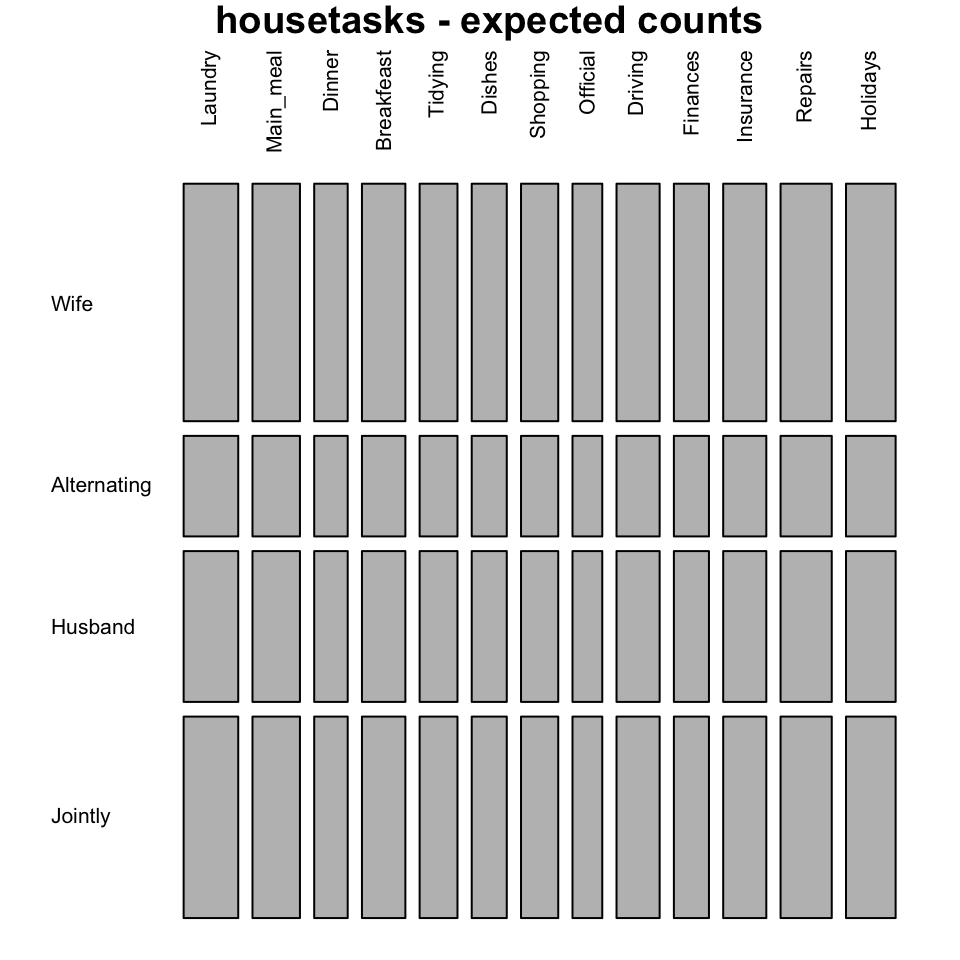

# Expected counts
round(chisq$expected,2)

##            Wife Alternating Husband Jointly
## Laundry    60.5        25.6    38.5    51.4
## Main_meal  52.6        22.3    33.4    44.6
## Dinner     37.2        15.7    23.6    31.5
## Breakfeast 48.2        20.4    30.6    40.9
## Tidying    42.0        17.8    26.6    35.6
## Dishes     38.9        16.5    24.7    33.0
## Shopping   41.3        17.5    26.2    35.0
## Official   33.0        14.0    21.0    28.0
## Driving    47.8        20.2    30.4    40.6
## Finances   38.9        16.5    24.7    33.0
## Insurance  47.8        20.2    30.4    40.6
## Repairs    56.8        24.0    36.0    48.2
## Holidays   55.0        23.3    35.0    46.7

As mentioned above the Chi-square statistic is 1944.456.

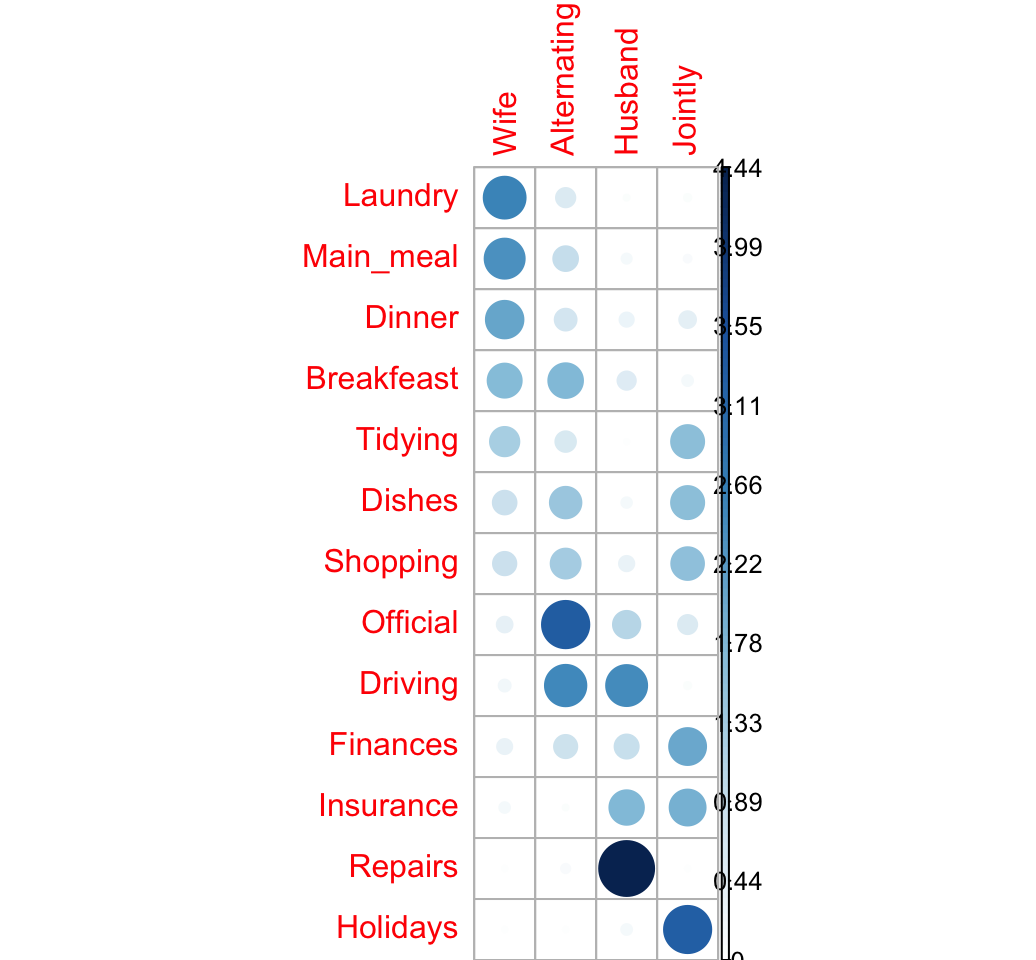

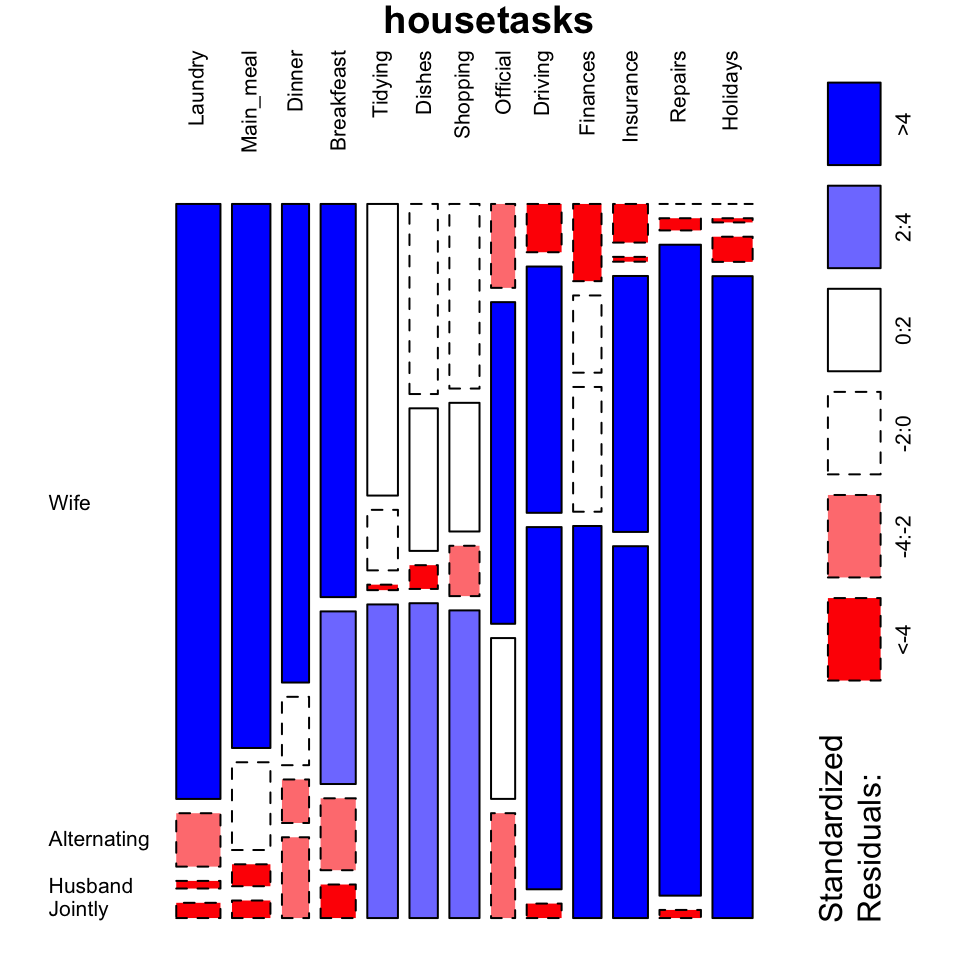

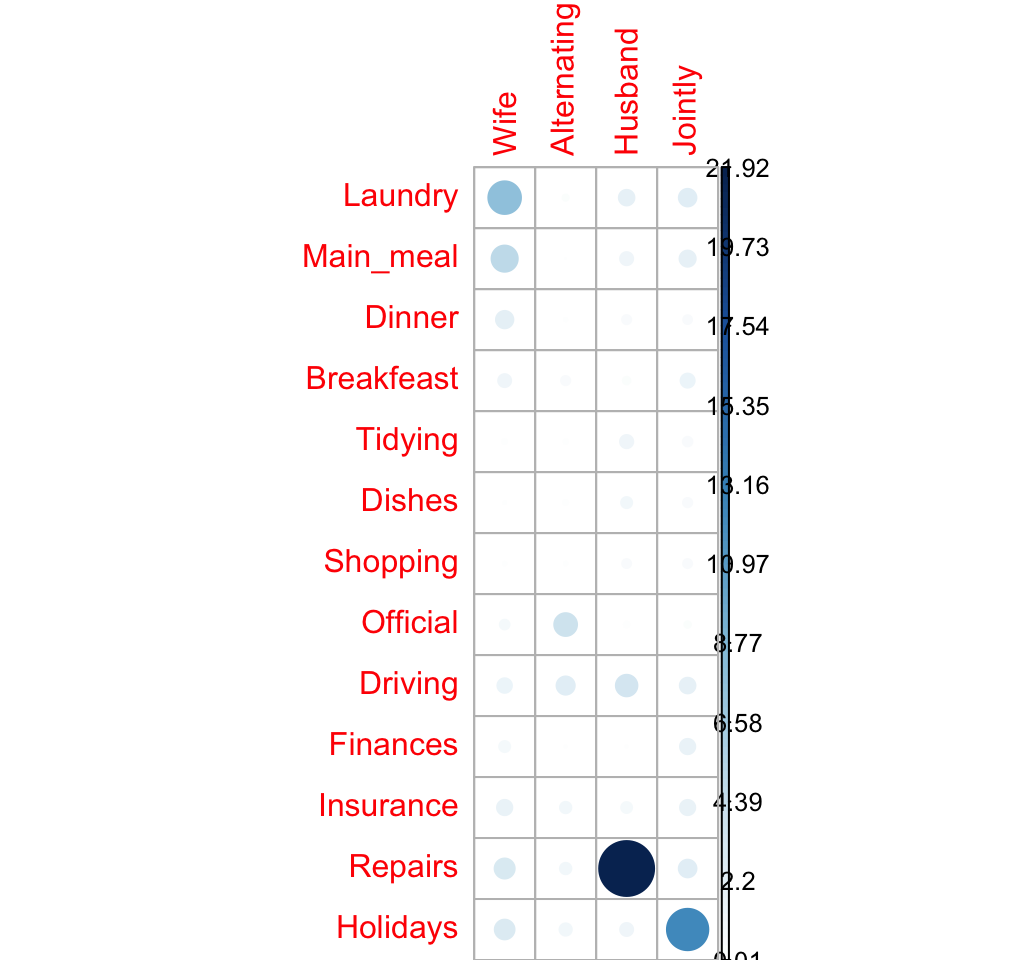

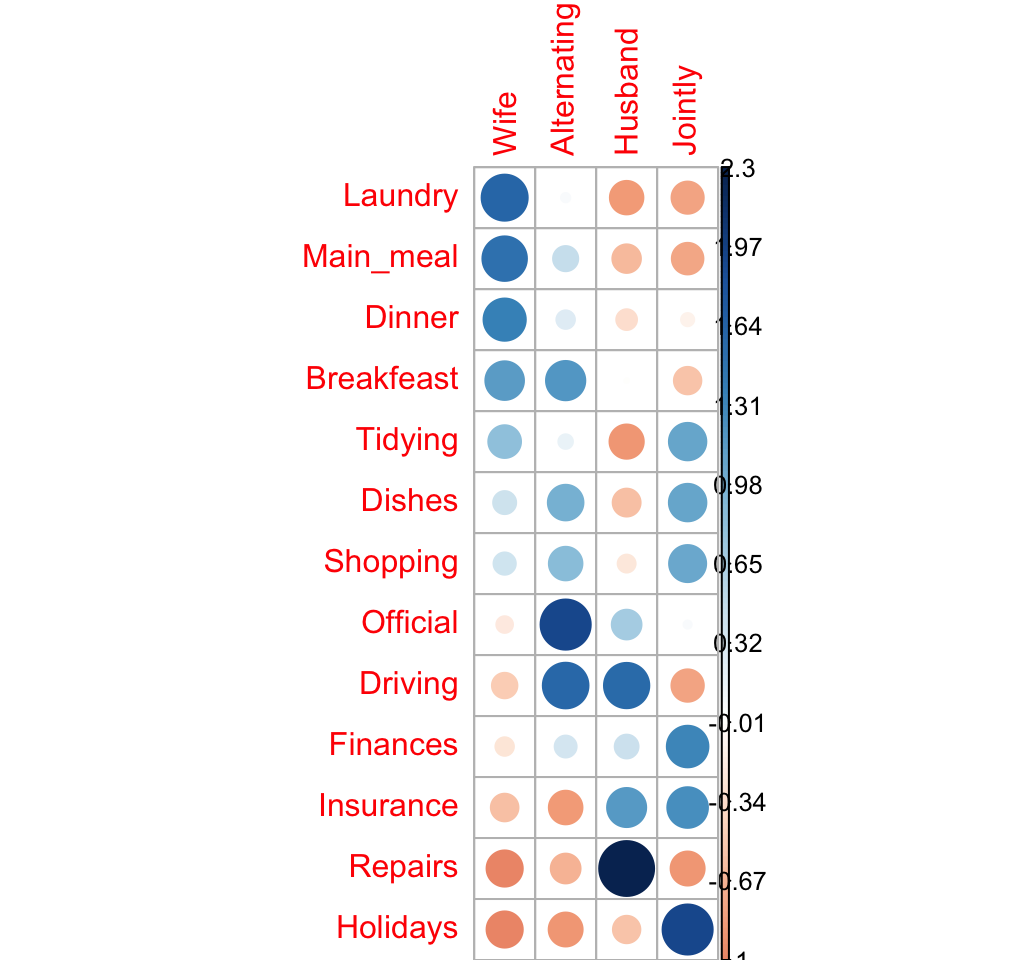

If you want to know the most contributing cells to the total Chi-square score, you just have to calculate the Chi-square statistic for each cell:

\[ r = \frac{o - e}{\sqrt{e}} \]

The above formula returns the so-called Pearson residuals (r) for each cell (or standardized residuals). Cells with the highest absolute standardized residuals contribute the most to the total Chi-square score.

Pearson residuals can be easily extracted from the output of the function chisq.test():

round(chisq$residuals, 3)

##             Wife Alternating Husband Jointly
## Laundry    12.27      -2.298  -5.878   -6.61
## Main_meal   9.84      -0.484  -4.917   -6.08
## Dinner      6.54      -1.192  -3.416   -3.30
## Breakfeast  4.88       3.457  -2.818   -5.30
## Tidying     1.70      -1.606  -4.969    3.58
## Dishes     -1.10       1.859  -4.163    3.49
## Shopping   -1.29       1.321  -3.362    3.38
## Official   -3.66       8.563   0.443   -2.46
## Driving    -5.47       6.836   8.100   -5.90
## Finances   -4.15      -0.852  -0.742    5.75
## Insurance  -5.76      -4.277   4.107    5.72
## Repairs    -7.53      -4.290  20.646   -6.65
## Holidays   -7.42      -4.620  -4.897   15.56

Let’s visualize Pearson residuals using the package corrplot:

library(corrplot)
corrplot(chisq$residuals, is.cor = FALSE)

For a given cell, the size of the circle is proportional to the amount of the cell contribution.

The sign of the standardized residuals is also very important to interpret the association between rows and columns as explained in the block below:

1. Positive residuals are in blue. Positive values in cells specify an attraction (positive association) between the corresponding row and column variables.
   • In the image above, it’s evident that there are an association between the column Wife and, the rows Laundry and Main_meal.
   • There is a strong positive association between the column Husband and the row Repair
2. Negative residuals are in red. This implies a repulsion (negative association) between the corresponding row and column variables. For example the column Wife are negatively associated (~ “not associated”) with the row Repairs. There is a repulsion between the column Husband and, the rows Laundry and Main_meal

The contribution (in %) of a given cell to the total Chi-square score is calculated as follow:

\[ contrib = \frac{r^2}{\chi^2} \]

• r is the residual of the cell

# Contibution in percentage (%)
contrib <- 100*chisq$residuals^2/chisq$statistic
round(contrib, 3)

##             Wife Alternating Husband Jointly
## Laundry    7.738       0.272   1.777   2.246
## Main_meal  4.976       0.012   1.243   1.903
## Dinner     2.197       0.073   0.600   0.560
## Breakfeast 1.222       0.615   0.408   1.443
## Tidying    0.149       0.133   1.270   0.661
## Dishes     0.063       0.178   0.891   0.625
## Shopping   0.085       0.090   0.581   0.586
## Official   0.688       3.771   0.010   0.311
## Driving    1.538       2.403   3.374   1.789
## Finances   0.886       0.037   0.028   1.700
## Insurance  1.705       0.941   0.868   1.683
## Repairs    2.919       0.947  21.921   2.275
## Holidays   2.831       1.098   1.233  12.445

# Visualize the contribution
corrplot(contrib, is.cor = FALSE)

The relative contribution of each cell to the total Chi-square score give some indication of the nature of the dependency between rows and columns of the contingency table.

It can be seen that:

1. The column “Wife” is strongly associated with Laundry, Main_meal, Dinner
2. The column “Husband” is strongly associated with the row Repairs
3. The column jointly is frequently associated with the row Holidays

Total inertia

As mentioned above, the total inertia is the amount of the information contained in the data table.

It’s called \(\phi^2\) (squared phi) and is calculated as follow:

\[ \phi^2 = \frac{\chi^2}{grand.total} \]

phi2 <- as.numeric(chisq$statistic/sum(housetasks))
phi2

## [1] 1.11

The square root of \(\phi^2\) are called trace and may be interpreted as a correlation coefficient (Bendixen, 2003). Any value of the trace > 0.2 indicates a significant dependency between rows and columns (Bendixen M., 2003)

Mosaic plot

Mosaic plot is used to visualize a contingency table in order to examine the association between categorical variables.

The function mosaicplot() [graphics package] can be used.

library("graphics")

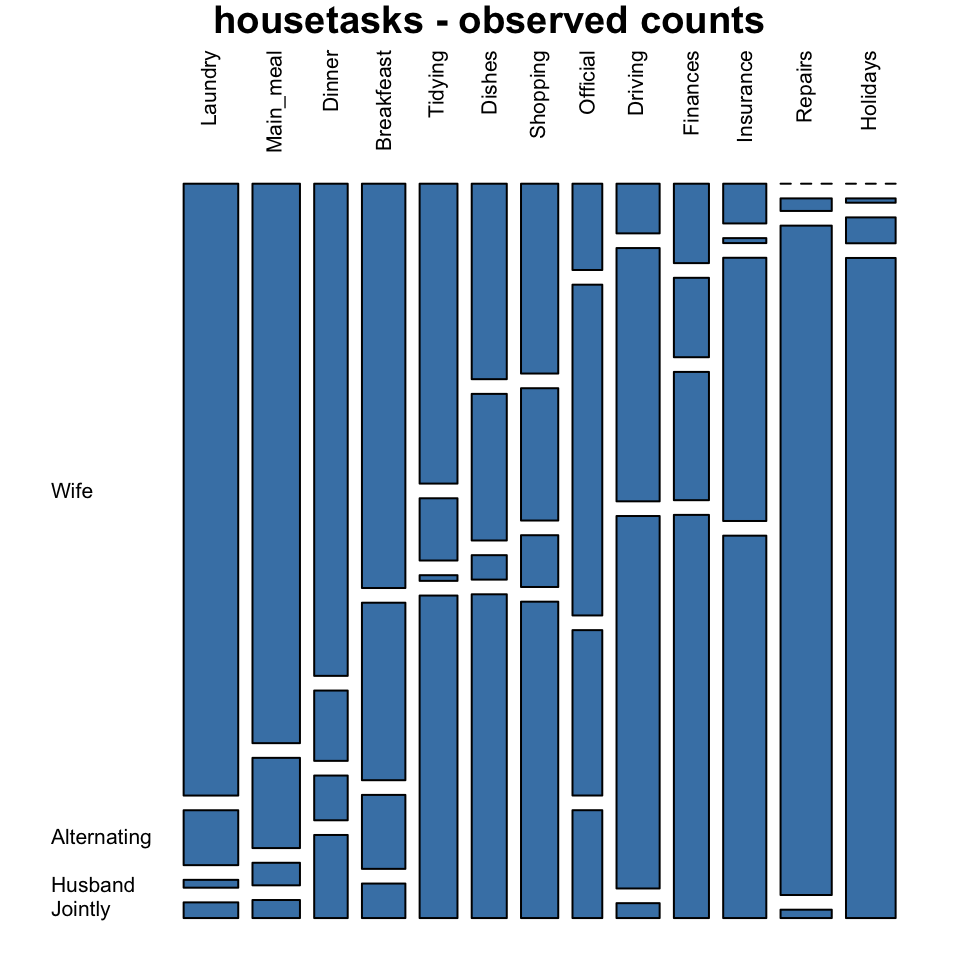

# Mosaic plot of observed values
mosaicplot(housetasks,  las=2, col="steelblue",
           main = "housetasks - observed counts")

# Mosaic plot of expected values
mosaicplot(chisq$expected,  las=2, col = "gray",
           main = "housetasks - expected counts")

In these plots, column variables are firstly spitted (vertical split) and then row variables are spited(horizontal split). For each cell, the height of bars is proportional to the observed relative frequency it contains:

\[ \frac{cell.value}{column.sum} \]

The blue plot, is the mosaic plot of the observed values. The gray one is the mosaic plot of the expected values under null hypothesis.

It’s also possible to color the mosaic plot according to the value of the standardized residuals:

mosaicplot(housetasks, shade = TRUE,   # Color the graph
           las = 2,                    # produces vertical labels
           main = "housetasks")

• This plot clearly show you that Laundry, Main_meal, Dinner and Breakfeast are more often done by the “Wife”.
• Repairs are done by the Husband

G-test: Likelihood ratio test

The G–test of independence is an alternative to the chi-square test of independence, and they will give approximately the same conclusion.

The test is based on the likelihood ratio defined as follow:

\[ ratio = \frac{o}{e} \]

• o is the observed value
• e is the expected value under null hypothesis

This likelihood ratio, or its logarithm, can be used to compute a p-value. When the logarithm of the likelihood ratio is used, the statistic is known as a log-likelihood ratio statistic.

This test is called G-test (or likelihood ratio test or maximum likelihood statistical significance test) and can be used in situations where Chi-square tests were previously recommended.

The G-test is generally defined as follow:

\[ G = 2 * \sum{o * log(\frac{o}{e})} \]

• o is the observed frequency in a cell
• e is the expected frequency under the null hypothesis
• log is the natural logarithm
• The sum is taken over all non-empty cells.

The distribution of G is approximately a chi-squared distribution, with the same number of degrees of freedom as in the corresponding chi-squared test:

\[df = (r - 1)(c - 1)\]

• r is the number of rows in the contingency table
• c is the number of column in the contingency table

The commonly used Pearson Chi-square test is, in fact, just an approximation of the log-likelihood ratio on which the G-tests are based.

Remember that, the Chi-square formula is:

\[ \chi^2 = \sum{\frac{(o - e)^2}{e}} \]

The functions likelihood.test() [Deducer package] or G.test() [RVAideMemoire] can be used to perform a G-test on a contingency table.

We’ll use the package RVAideMemoire which can be installed as follow : install.packages("RVAideMemoire").

The function G.test() works as chisq.test():

library("RVAideMemoire")
gtest <- G.test(as.matrix(housetasks))
gtest

##
##  G-test
##
## data:  as.matrix(housetasks)
## G = 2000, df = 40, p-value <2e-16

Interpret the association between rows and columns

To interpret the association between the rows and the columns of the contingency table, the likelihood ratio can be used as an index (i):

\[ ratio = \frac{o}{e} \]

For a given cell,

• If ratio > 1, there is an “attraction” (association) between the corresponding column and row
• If ratio < 1, there is a “repulsion” between the corresponding column and row

The ratio can be calculated as follow:

ratio <- chisq$observed/chisq$expected
round(ratio,3)

##             Wife Alternating Husband Jointly
## Laundry    2.576       0.546   0.052   0.078
## Main_meal  2.356       0.898   0.150   0.090
## Dinner     2.072       0.699   0.297   0.412
## Breakfeast 1.702       1.766   0.490   0.171
## Tidying    1.263       0.619   0.038   1.601
## Dishes     0.823       1.458   0.162   1.607
## Shopping   0.799       1.316   0.343   1.570
## Official   0.363       3.290   1.097   0.535
## Driving    0.209       2.519   2.470   0.074
## Finances   0.334       0.790   0.851   2.001
## Insurance  0.167       0.049   1.745   1.898
## Repairs    0.000       0.125   4.439   0.042
## Holidays   0.000       0.043   0.172   3.276

Note that, you can also use the R code : gtest\$observed/gtest\$expected

The package corrplot can be used to make a graph of the likelihood ratio:

corrplot(ratio, is.cor = FALSE)

The image above confirms our previous observations:

• The rows Laundry, Main_meal and Dinner are associated with the column Wife
• Repairs are done more often by the Husband
• Holidays are taken Jointly

Let’s take the log(ratio) to see the attraction and the repulsion in different colors:

• If ratio < 1 => log(ratio) < 0 (negative values) => red color
• If ratio > 1 = > log(ratio) > 0 (positive values) => blue color

We’ll also add a small value (0.5) to all cells to avoid log(0):

corrplot(log2(ratio + 0.5), is.cor = FALSE)

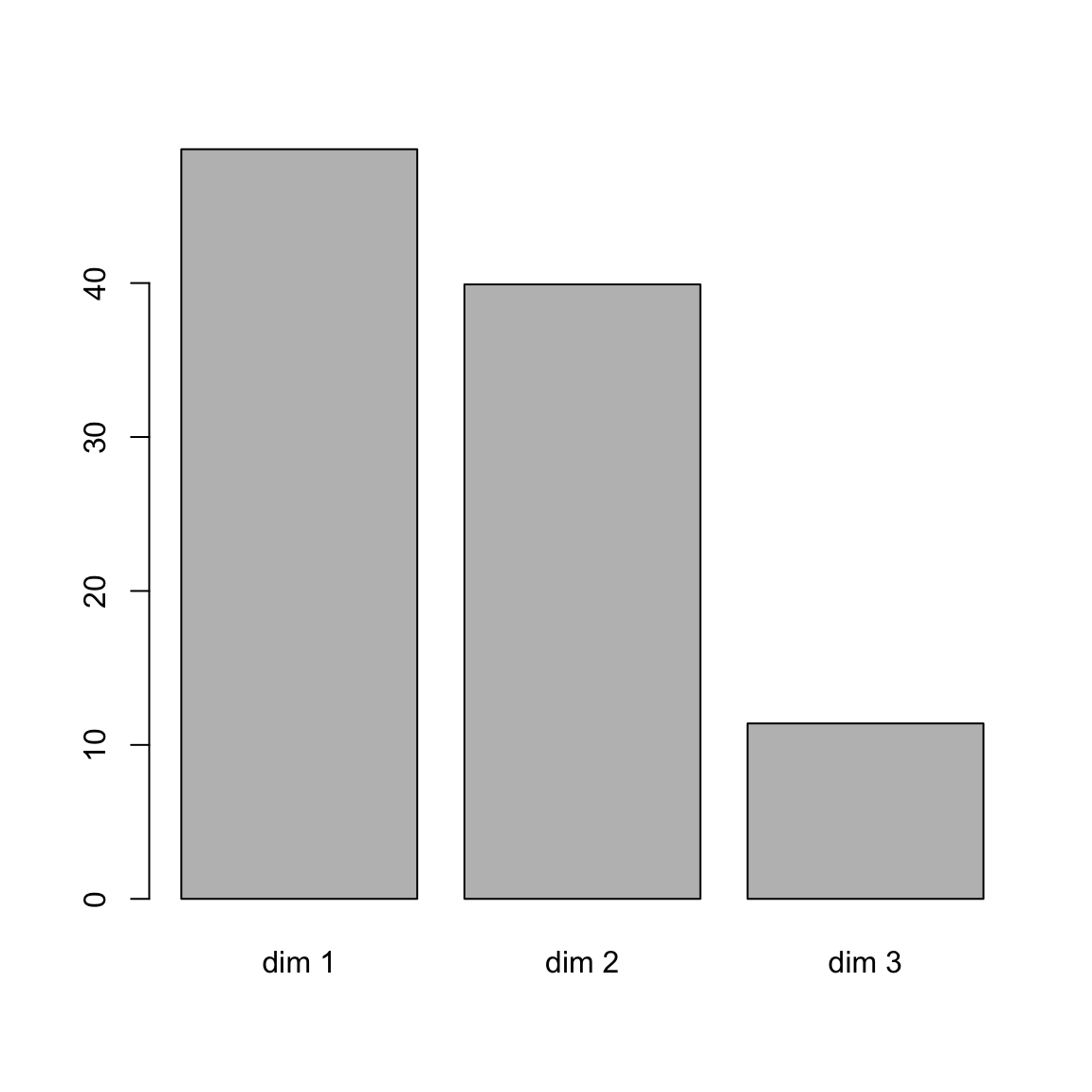

Eigenvalues and screeplot

# Eigenvalues
eig <- sv^2
# Variances in percentage
variance <- eig*100/sum(eig)
# Cumulative variances
cumvar <- cumsum(variance)
eig<- data.frame(eig = eig, variance = variance,
                     cumvariance = cumvar)
head(eig)

##     eig variance cumvariance
## 1 0.543     48.7        48.7
## 2 0.445     39.9        88.6
## 3 0.127     11.4       100.0

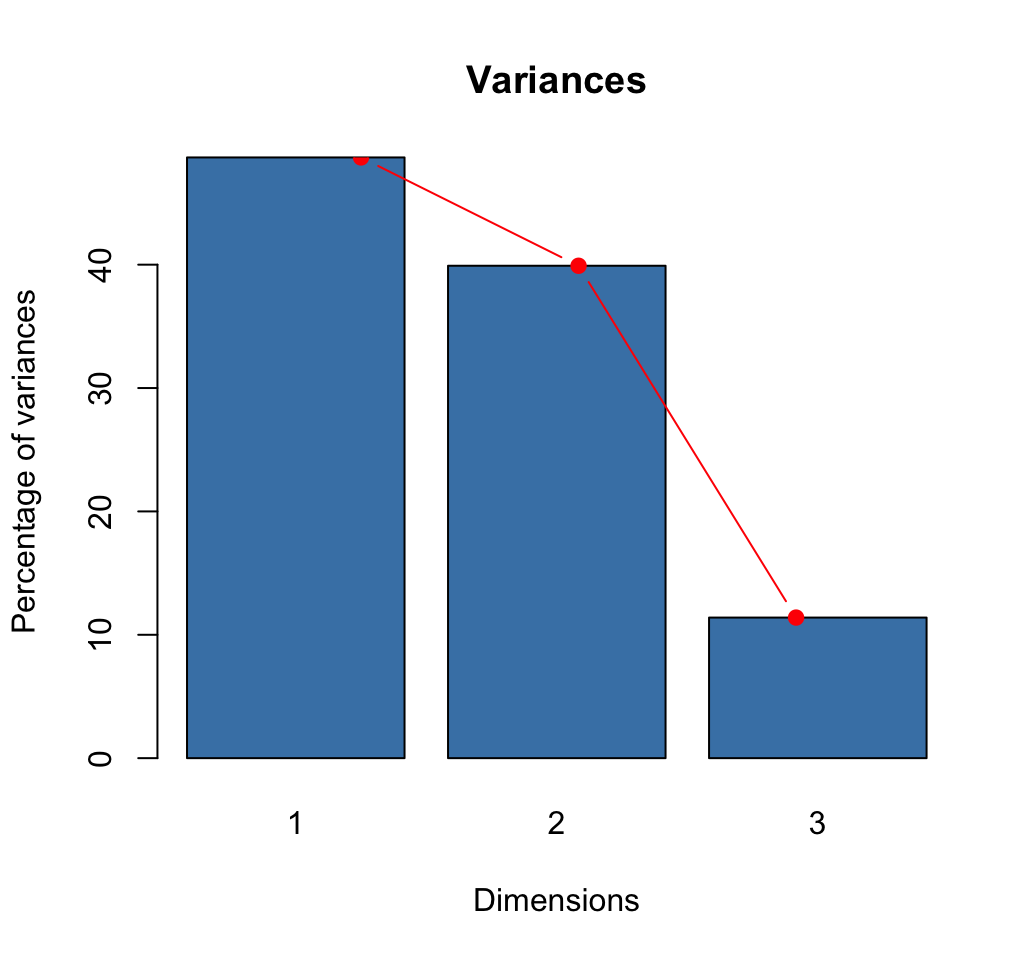

barplot(eig[, 2], names.arg=1:nrow(eig),
       main = "Variances",
       xlab = "Dimensions",
       ylab = "Percentage of variances",
       col ="steelblue")
# Add connected line segments to the plot
lines(x = 1:nrow(eig), eig[, 2],
      type="b", pch=19, col = "red")

How many dimensions to retain?:

1. The maximum number of axes in the CA is :

\[ nb.axes = min( r-1, c-1) \]

r and c are respectively the number of rows and columns in the table.

2. Use elbow method

Row coordinates

We can use the function apply to perform arbitrary operations on the rows and columns of a matrix.

A simplified format is:

apply(X, MARGIN, FUN, ...)

• x: a matrix
• MARGIN: allowed values can be 1 or 2. 1 specifies that we want to operate on the rows of the matrix. 2 specifies that we want to operate on the column.
• FUN: the function to be applied
• ...: optional arguments to FUN

# row sum
row.sum <- apply(housetasks, 1, sum)
# row mass
row.mass <- row.sum/n
# row coord = sv * u /sqrt(row.mass)
cc <- t(apply(u, 1, '*', sv)) # each row X sv
row.coord <- apply(cc, 2, '/', sqrt(row.mass))
rownames(row.coord) <- rownames(housetasks)
colnames(row.coord) <- paste0("Dim.", 1:nb.axes)
round(row.coord,3)

##             Dim.1  Dim.2  Dim.3
## Laundry    -0.992 -0.495 -0.317
## Main_meal  -0.876 -0.490 -0.164
## Dinner     -0.693 -0.308 -0.207
## Breakfeast -0.509 -0.453  0.220
## Tidying    -0.394  0.434 -0.094
## Dishes     -0.189  0.442  0.267
## Shopping   -0.118  0.403  0.203
## Official    0.227 -0.254  0.923
## Driving     0.742 -0.653  0.544
## Finances    0.271  0.618  0.035
## Insurance   0.647  0.474 -0.289
## Repairs     1.529 -0.864 -0.472
## Holidays    0.252  1.435 -0.130

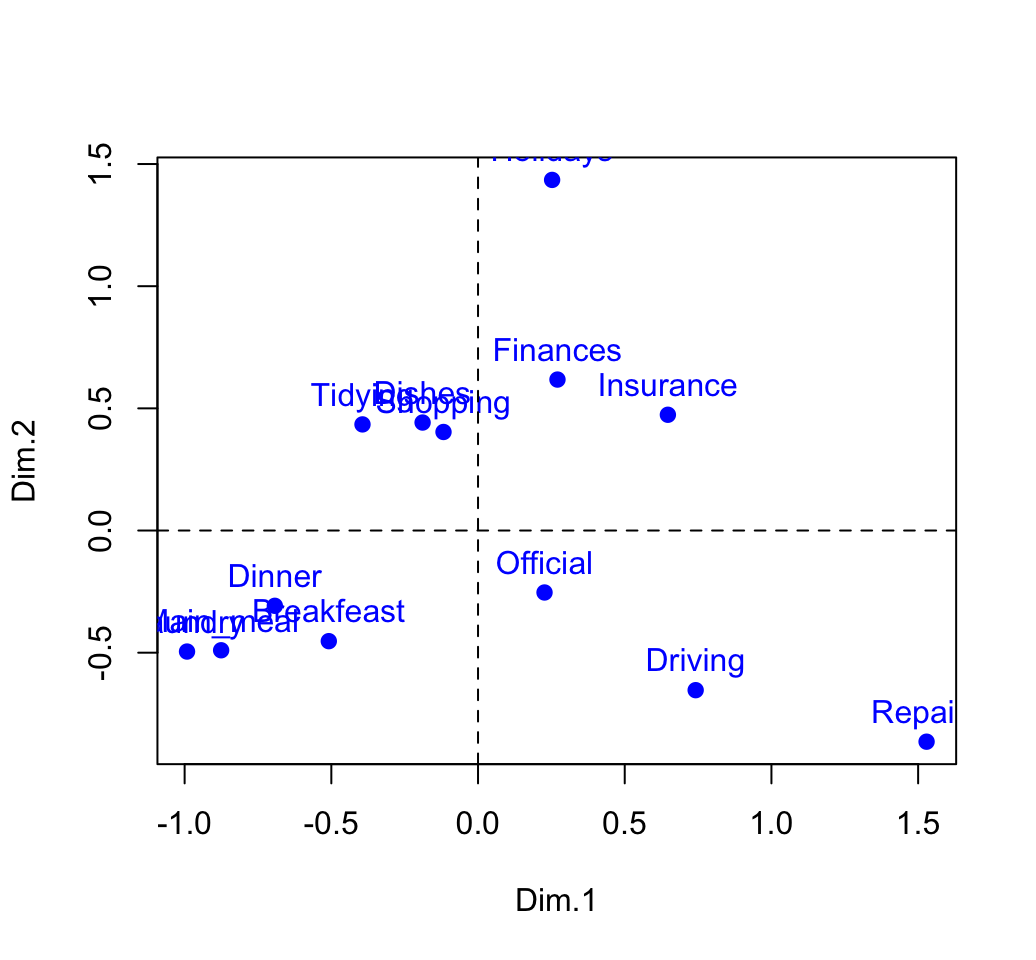

# plot
plot(row.coord, pch=19, col = "blue")
text(row.coord, labels =rownames(row.coord), pos = 3, col ="blue")
abline(v=0, h=0, lty = 2)

Column coordinates

# Coordinates of columns
col.sum <- apply(housetasks, 2, sum)
col.mass <- col.sum/n
# coordinates sv * v /sqrt(col.mass)
cc <- t(apply(v, 1, '*', sv))
col.coord <- apply(cc, 2, '/', sqrt(col.mass))
rownames(col.coord) <- colnames(housetasks)
colnames(col.coord) <- paste0("Dim", 1:nb.axes)
head(col.coord)

##                Dim1   Dim2    Dim3
## Wife        -0.8376 -0.365 -0.1999
## Alternating -0.0622 -0.292  0.8486
## Husband      1.1609 -0.602 -0.1889
## Jointly      0.1494  1.027 -0.0464

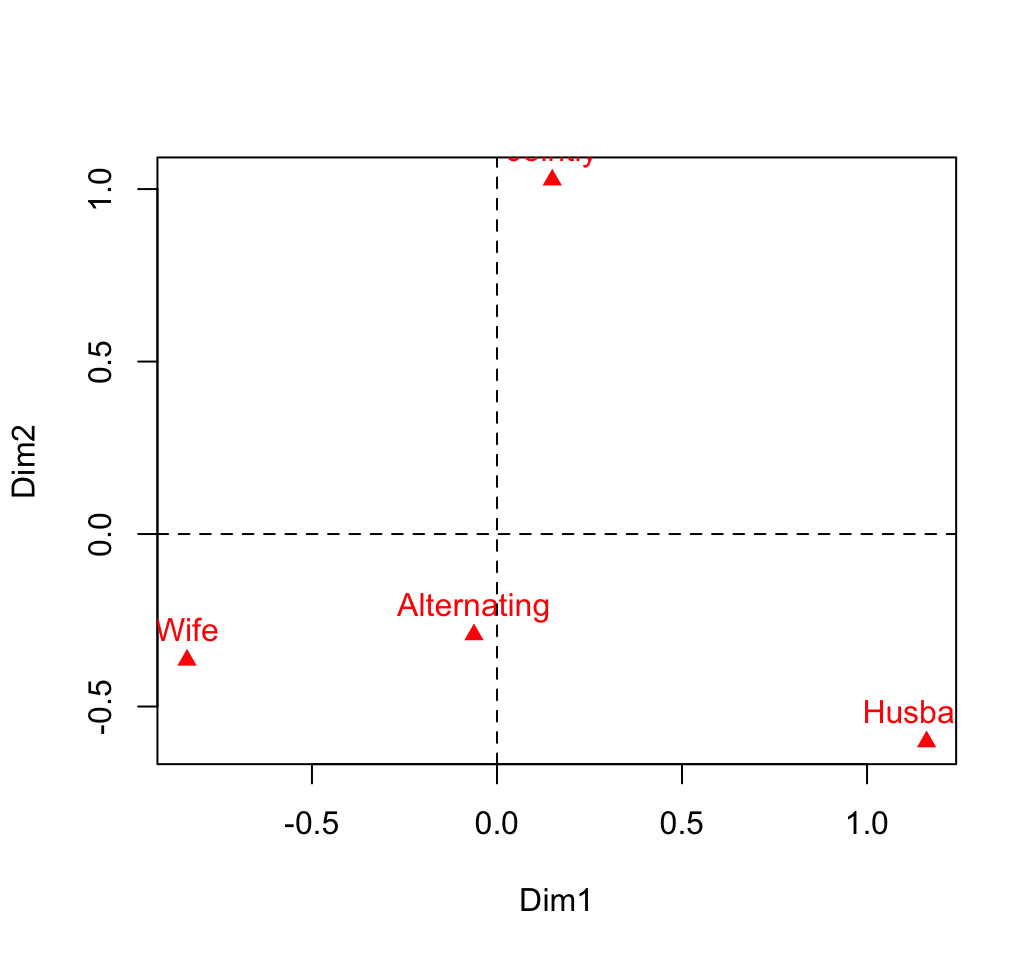

# plot
plot(col.coord, pch=17, col = "red")
text(col.coord, labels =rownames(col.coord), pos = 3, col ="red")
abline(v=0, h=0, lty = 2)

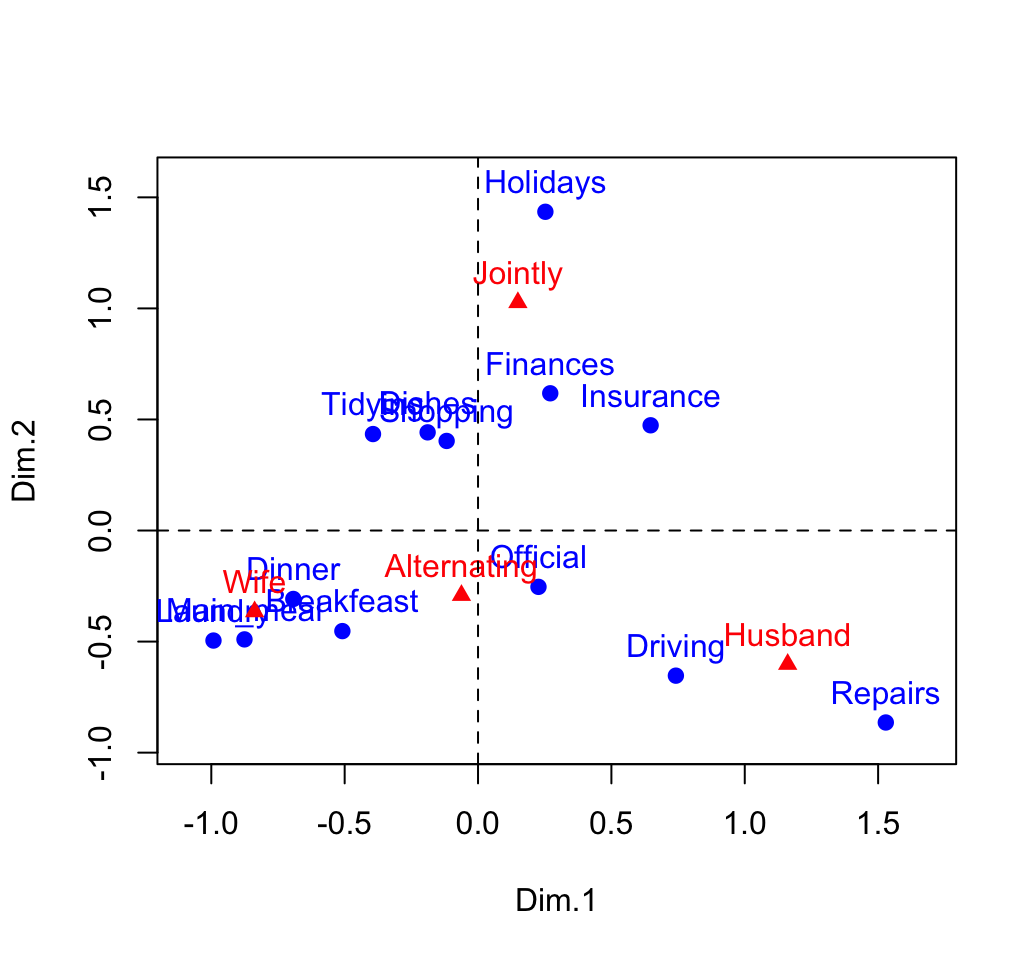

Biplot of rows and columns to view the association

xlim <- range(c(row.coord[,1], col.coord[,1]))*1.1
ylim <- range(c(row.coord[,2], col.coord[,2]))*1.1
# Plot of rows
plot(row.coord, pch=19, col = "blue", xlim = xlim, ylim = ylim)
text(row.coord, labels =rownames(row.coord), pos = 3, col ="blue")
# plot off columns
points(col.coord, pch=17, col = "red")
text(col.coord, labels =rownames(col.coord), pos = 3, col ="red")
abline(v=0, h=0, lty = 2)

You can interpret the distance between rows points or between column points but the distance between column points and row points are not meaningful.

Diagnostic

Recall that, the total inertia contained in the data is:

\[ \phi^2 = \frac{\chi^2}{n} = 1.11494 \]

Our two-dimensional plot captures about 88% of the total inertia of the table.

Contribution of rows and columns

The contributions of a rows/columns to the definition of a principal axis are :

\[ row.contrib = \frac{row.mass * row.coord^2}{eigenvalue} \]

\[ col.contrib = \frac{col.mass * col.coord^2}{eigenvalue} \]

Contribution of rows in %

# contrib <- row.mass * row.coord^2/eigenvalue
cc <- apply(row.coord^2, 2, "*", row.mass)
row.contrib <- t(apply(cc, 1, "/", eig[1:nb.axes,1])) *100
round(row.contrib, 2)

##            Dim.1 Dim.2 Dim.3
## Laundry    18.29  5.56  7.97
## Main_meal  12.39  4.74  1.86
## Dinner      5.47  1.32  2.10
## Breakfeast  3.82  3.70  3.07
## Tidying     2.00  2.97  0.49
## Dishes      0.43  2.84  3.63
## Shopping    0.18  2.52  2.22
## Official    0.52  0.80 36.94
## Driving     8.08  7.65 18.60
## Finances    0.88  5.56  0.06
## Insurance   6.15  4.02  5.25
## Repairs    40.73 15.88 16.60
## Holidays    1.08 42.45  1.21

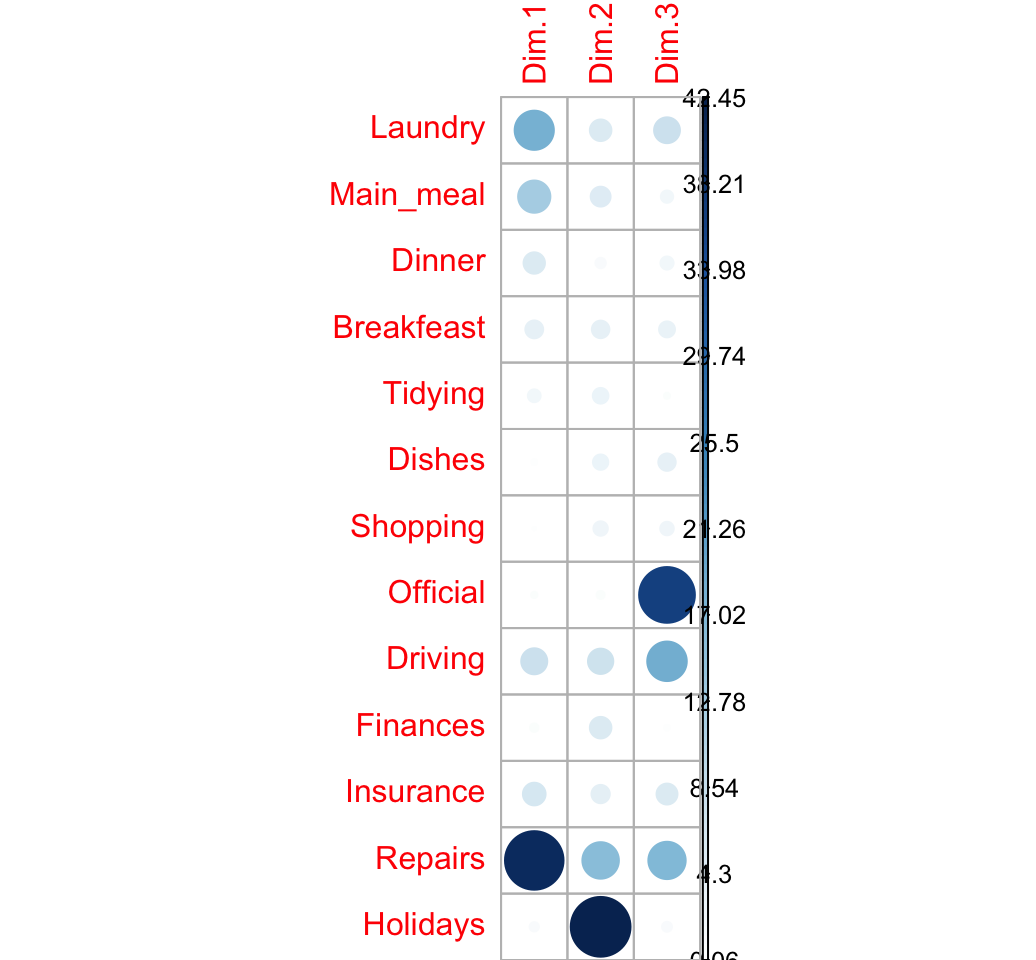

corrplot(row.contrib, is.cor = FALSE)

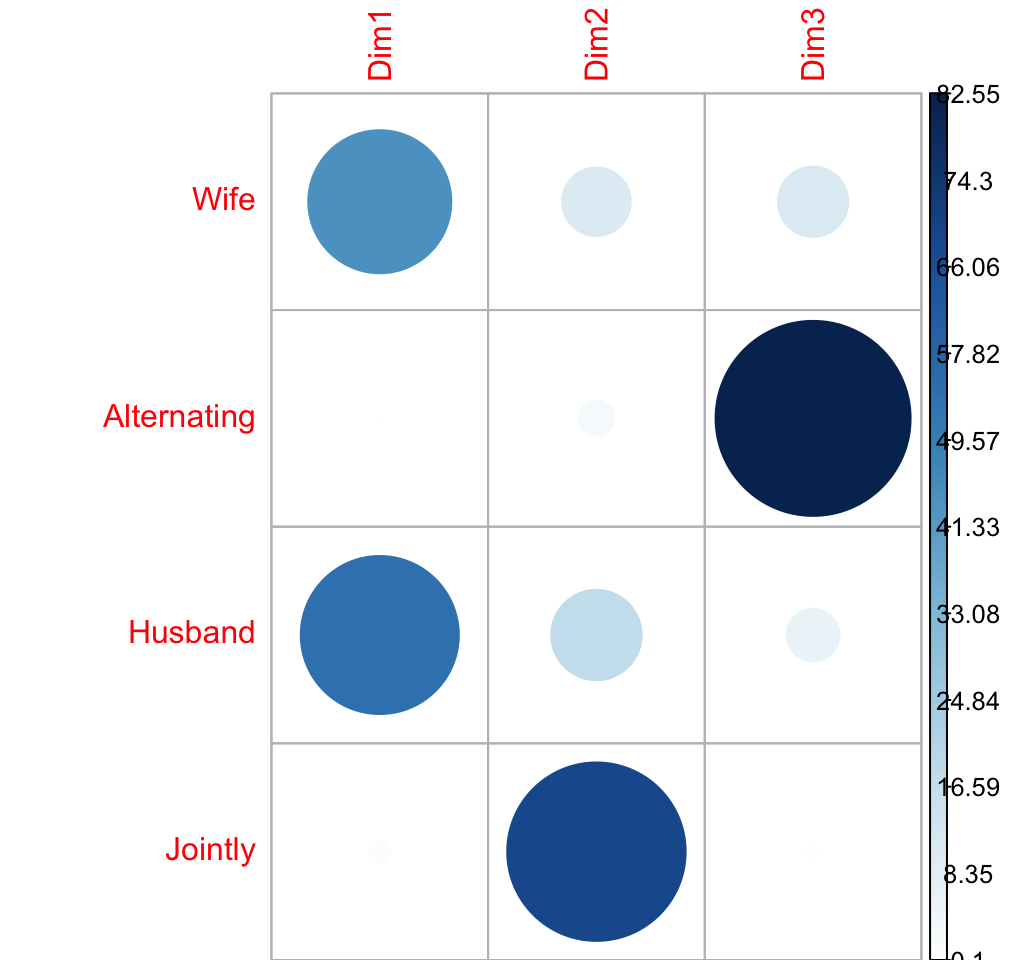

Contribution of columns in %

# contrib <- col.mass * col.coord^2/eigenvalue
cc <- apply(col.coord^2, 2, "*", col.mass)
col.contrib <- t(apply(cc, 1, "/", eig[1:nb.axes,1])) *100
round(col.contrib, 2)

##             Dim1  Dim2  Dim3
## Wife        44.5 10.31 10.82
## Alternating  0.1  2.78 82.55
## Husband     54.2 17.79  6.13
## Jointly      1.2 69.12  0.50

corrplot(col.contrib, is.cor = FALSE)

Quality of the representation

The quality of the representation is called COS2.

The quality of the representation of a row on an axis is:

\[ row.cos2 = \frac{row.coord^2}{d^2} \]

• row.coord is the coordinate of the row on the axis
• \(d^2\) is the squared distance from the average profile

Recall that the distance between each row profile and the average row profile is:

\[ d^2(row_i, average.profile) = \sum{\frac{(row.profile_i - average.profile)^2}{average.profile}} \]

row.profile <- housetasks/row.sum
head(round(row.profile, 3))

##             Wife Alternating Husband Jointly
## Laundry    0.886       0.080   0.011   0.023
## Main_meal  0.810       0.131   0.033   0.026
## Dinner     0.713       0.102   0.065   0.120
## Breakfeast 0.586       0.257   0.107   0.050
## Tidying    0.434       0.090   0.008   0.467
## Dishes     0.283       0.212   0.035   0.469

average.profile <- col.sum/n
head(round(average.profile, 3))

##        Wife Alternating     Husband     Jointly
##       0.344       0.146       0.218       0.292

The R code below computes the distance from the average profile for all the row variables

d2.row <- apply(row.profile, 1,
                function(row.p, av.p){sum(((row.p - av.p)^2)/av.p)},
                average.rp)
head(round(d2.row,3))

##    Laundry  Main_meal     Dinner Breakfeast    Tidying     Dishes
##      1.329      1.034      0.618      0.512      0.353      0.302

The cos2 of rows on the factor map are:

row.cos2 <- apply(row.coord^2, 2, "/", d2.row)
round(row.cos2, 3)

##            Dim.1 Dim.2 Dim.3
## Laundry    0.740 0.185 0.075
## Main_meal  0.742 0.232 0.026
## Dinner     0.777 0.154 0.070
## Breakfeast 0.505 0.400 0.095
## Tidying    0.440 0.535 0.025
## Dishes     0.118 0.646 0.236
## Shopping   0.064 0.748 0.189
## Official   0.053 0.066 0.881
## Driving    0.432 0.335 0.233
## Finances   0.161 0.837 0.003
## Insurance  0.576 0.309 0.115
## Repairs    0.707 0.226 0.067
## Holidays   0.030 0.962 0.008

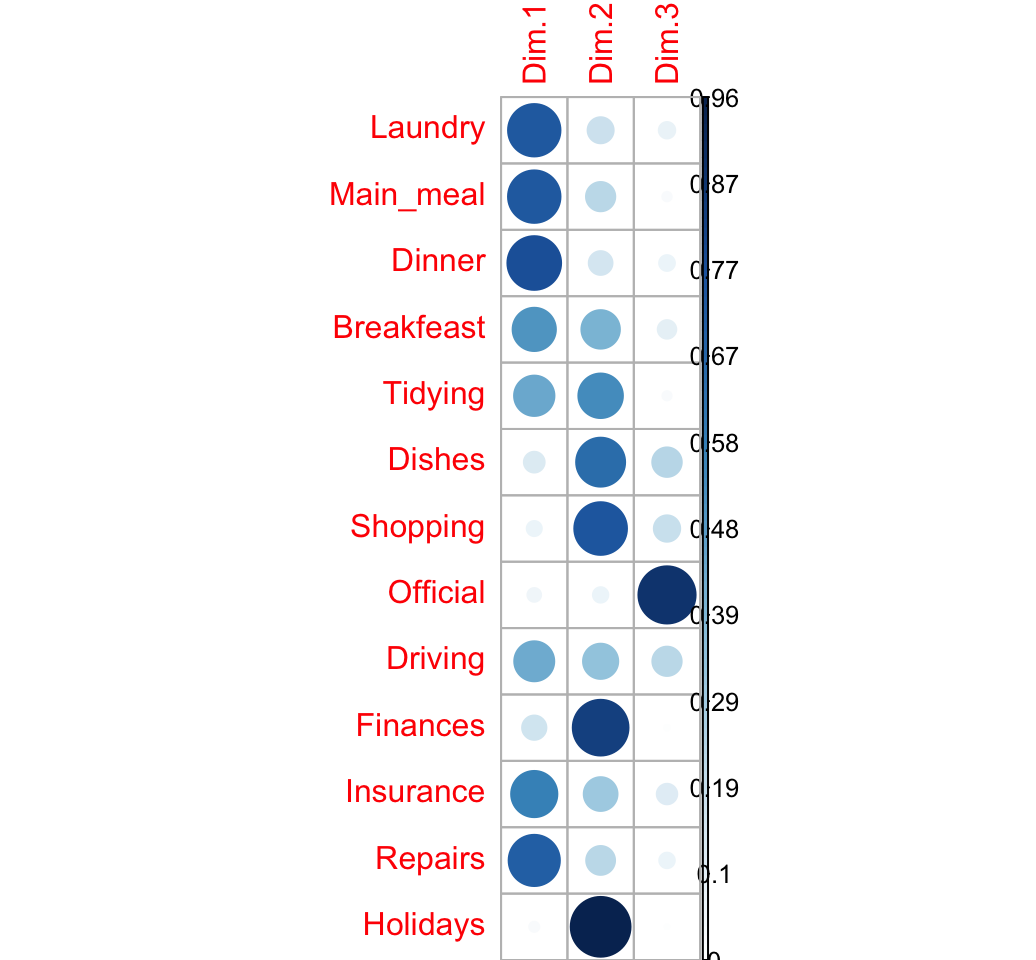

visualize the cos2:

corrplot(row.cos2, is.cor = FALSE)

Cos2 of columns

\[ col.cos2 = \frac{col.coord^2}{d^2} \]

col.profile <- t(housetasks)/col.sum
col.profile <- t(col.profile)
#head(round(col.profile, 3))
average.profile <- row.sum/n
#head(round(average.profile, 3))

The R code below computes the distance from the average profile for all the column variables

d2.col <- apply(col.profile, 2,
        function(col.p, av.p){sum(((col.p - av.p)^2)/av.p)},
        average.profile)
#round(d2.col,3)

The cos2 of columns on the factor map are:

col.cos2 <- apply(col.coord^2, 2, "/", d2.col)
round(col.cos2, 3)

##              Dim1  Dim2  Dim3
## Wife        0.802 0.152 0.046
## Alternating 0.005 0.105 0.890
## Husband     0.772 0.208 0.020
## Jointly     0.021 0.977 0.002

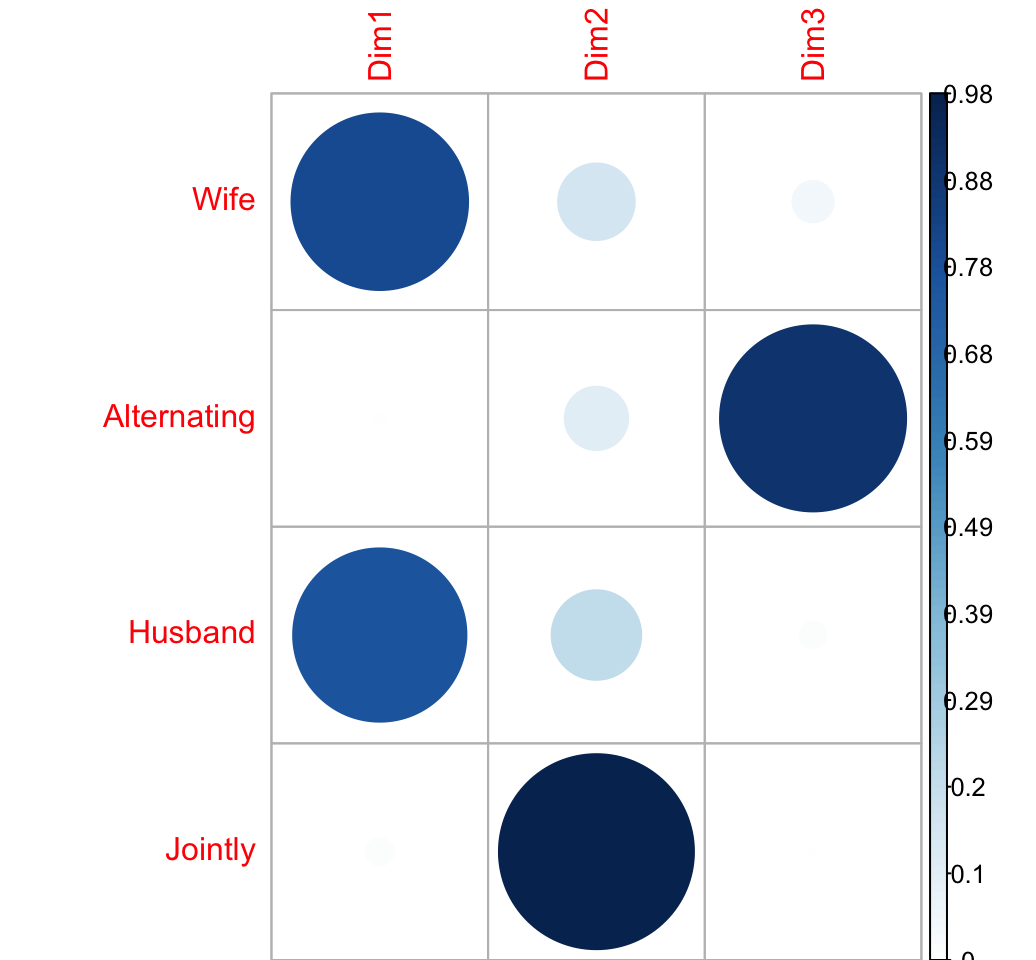

visualize the cos2:

corrplot(col.cos2, is.cor = FALSE)

Supplementary rows/columns

# Supplementary row
sup.row <- as.data.frame(housetasks["Dishes",, drop = FALSE])
# Supplementary row profile
sup.row.sum <- apply(sup.row, 1, sum)
sup.row.profile <- sweep(sup.row, 1, sup.row.sum, "/")
# V/sqrt(col.mass)
vv <- sweep(v, 1, sqrt(col.mass), FUN = "/")
# Supplementary row coord
sup.row.coord <- as.matrix(sup.row.profile) %*% vv
sup.row.coord

##          [,1]  [,2]  [,3]
## Dishes -0.189 0.442 0.267

## COS2 = coor^2/Distance from average profile
d2.row <- apply(sup.row.profile, 1,
        function(row.p, av.p){sum(((row.p - av.p)^2)/av.p)},
        average.rp)
sup.row.cos2 <- sweep(sup.row.coord^2, 1, d2.row, FUN = "/")
